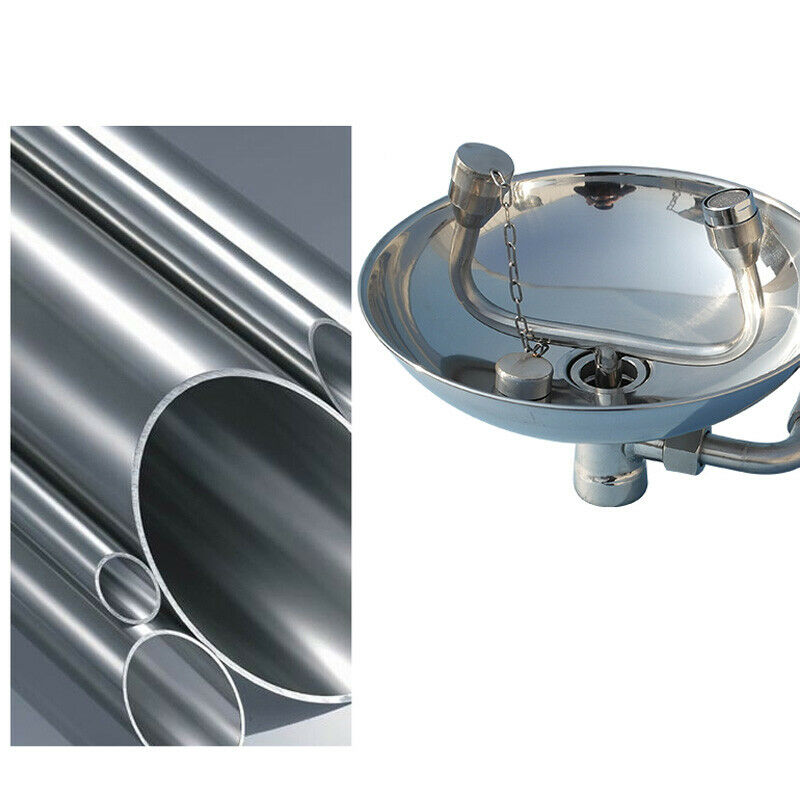

Anti corrosion Coating Stainless Steel: Strong resistance to the corrosion of acid, alkali, salt, oil and other chemical materials.
Emergency Eyewash Station：The simple eye wash safety solution should be wall mounted in an accessible position. The highly visible makes the eye wash station easier to locate in an emergency.
Easy to use:Once the stainless steel push-handle has been activated, the eye washer station's stay open ball valve allows hands-free operation. The water in the device can drain itself off automatically on the no operative conditions, so this sprayer is applicable to the place with Low temperature.
Ball Vale Control:Use ball valves to control spray and wash eyes, respectively. Easy to operate, fast opening and closing, reliable sealing.Feature:

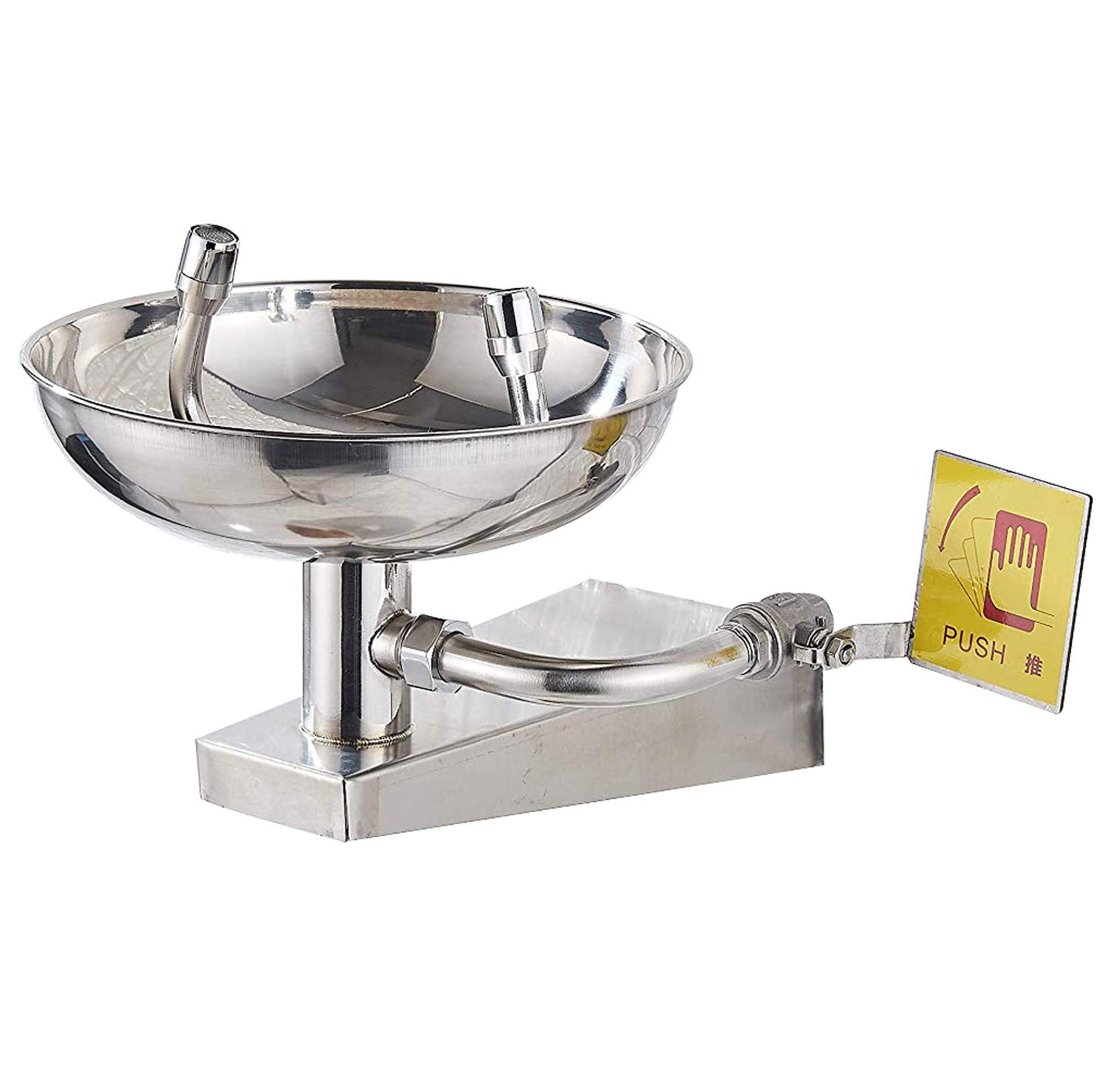

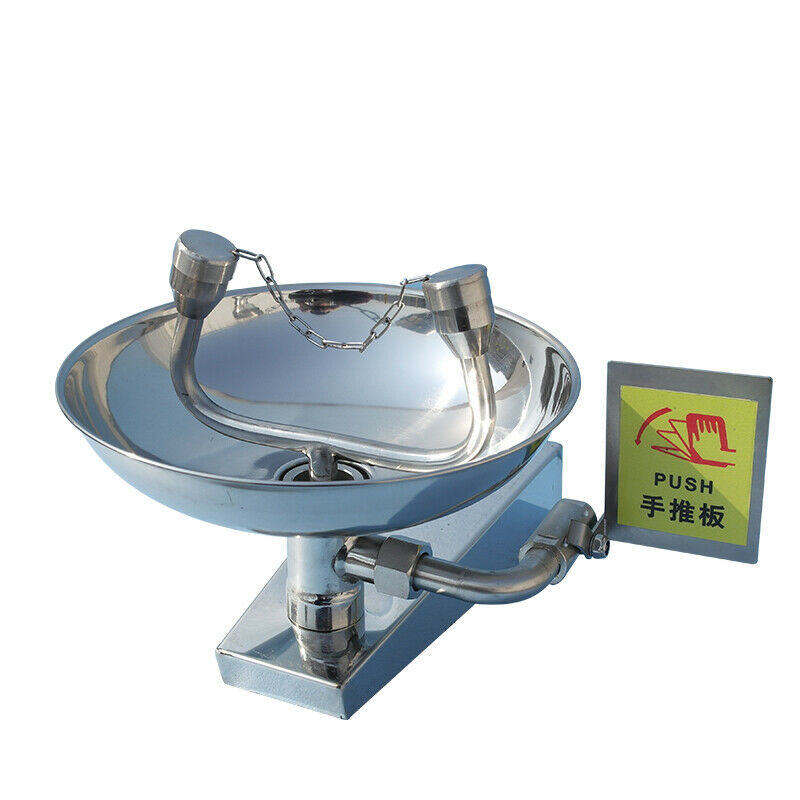

Eyewash Mounting ：Wall mount
Eye Wash Bowl Material ：304 stainless steel
Eye Wash Activates by ：push plate Eye Wash Covering ：YES
Pipe Material：304 stainless steel
Eye Wash Handle Material：Aluminum alloyApplication:
Battery charging areas,
High dust areas,
Dipping operations, and
Hazardous substances dispensing areas. Eye washer:
1. Eye / face wash bowl: 260mm dia. stainless steel with 304SS cover
2. Eye wash strainer : stainless steel, built-in chemical resistant PP
3. Eye wash : stainless steel 304 inlet pipe, stay-open ball valve switch & eye wash bowl
4. Sign: Furnished with luminous identification sign.
5. Eyewash flow rate: 12~18L/Min
6. Activation: push plate Parameter:
1. Fluid: drinking water or fire-fighting water
2. Standard pressure: 0.2~0.4MPA
3. Nominal pressure: 0.4MPA
4. Sealing pressure: 0.45MPA
5. Spray flow L/min: 120-180
6. Eyewash flow L/min: ≥12
7. In compliment with emergency eyewash and shower standard ANSI Z358.1.2009 and EN 15154-1:2006 + AC: 2014
8. The control switch or valve of the eyewash device and the eyewash nozzle quickly start.
9. Applicable conditions: normal temperature pure water or water standard Package Included:

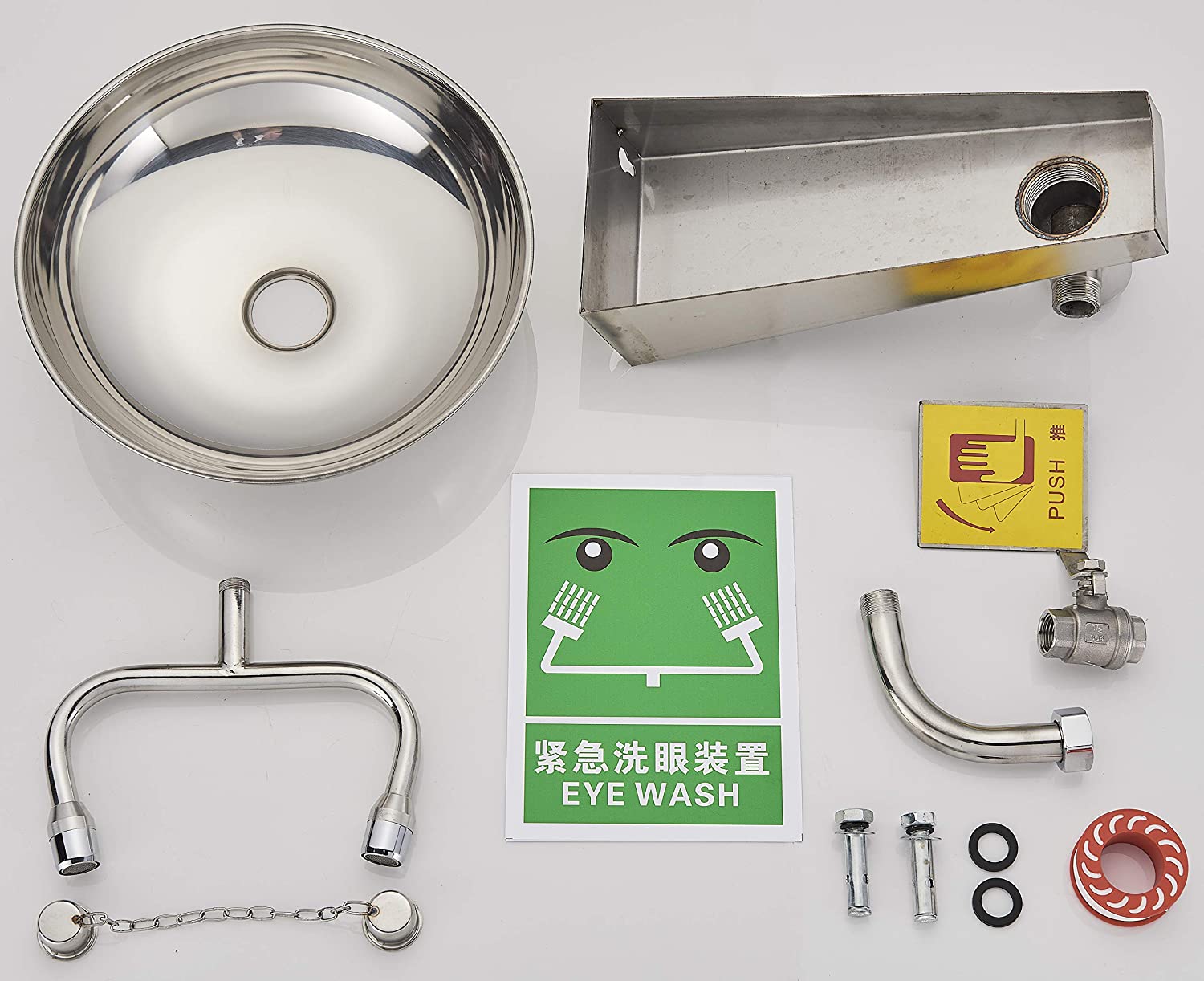

1 x Set of Wall-Mounted Emergency Eyewash
