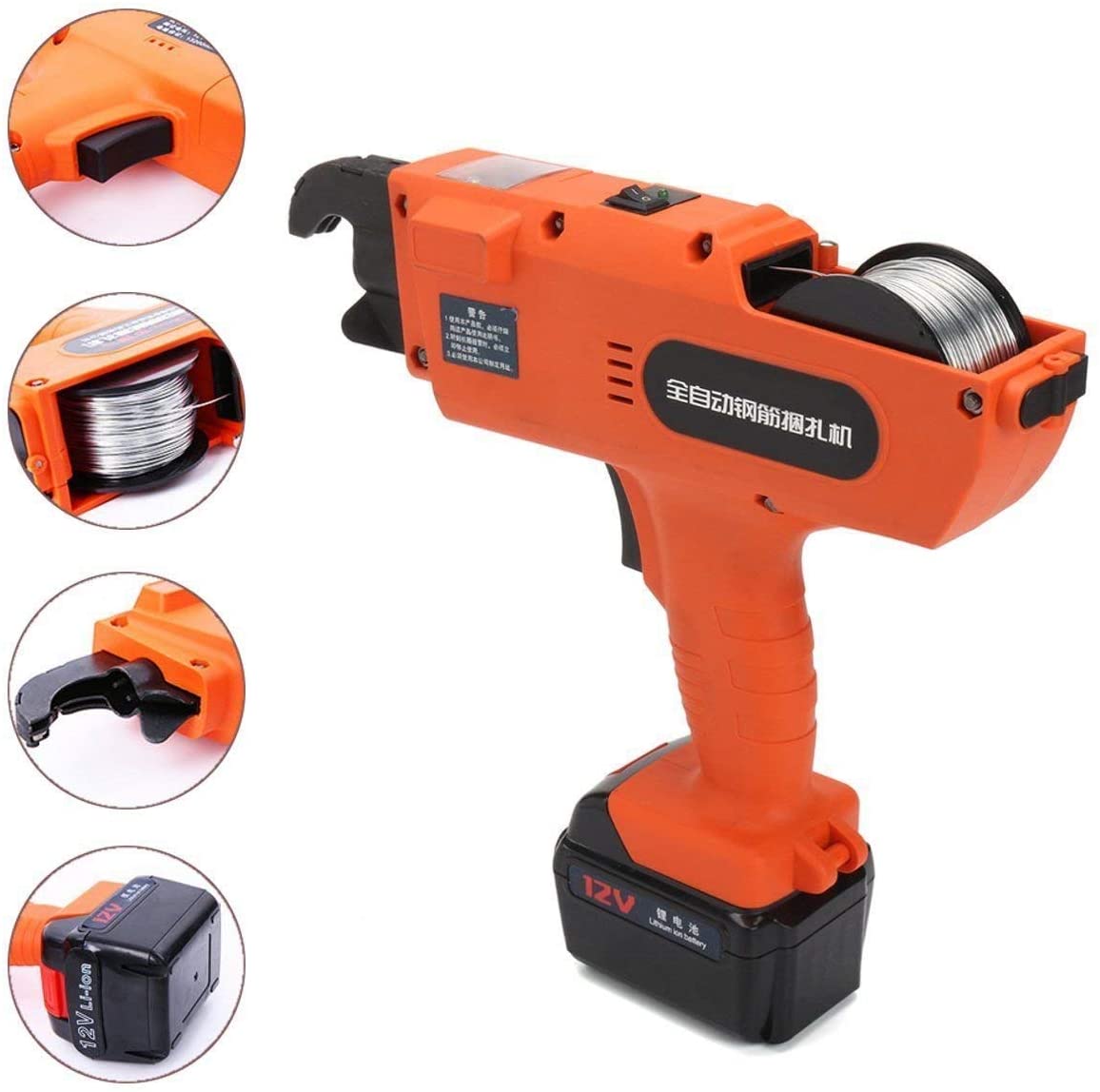

Rebar Tier Tying Machine Handheld Electric Tying Tools 30-60mm Tying Range
Free Shipping to USA and Worldwide

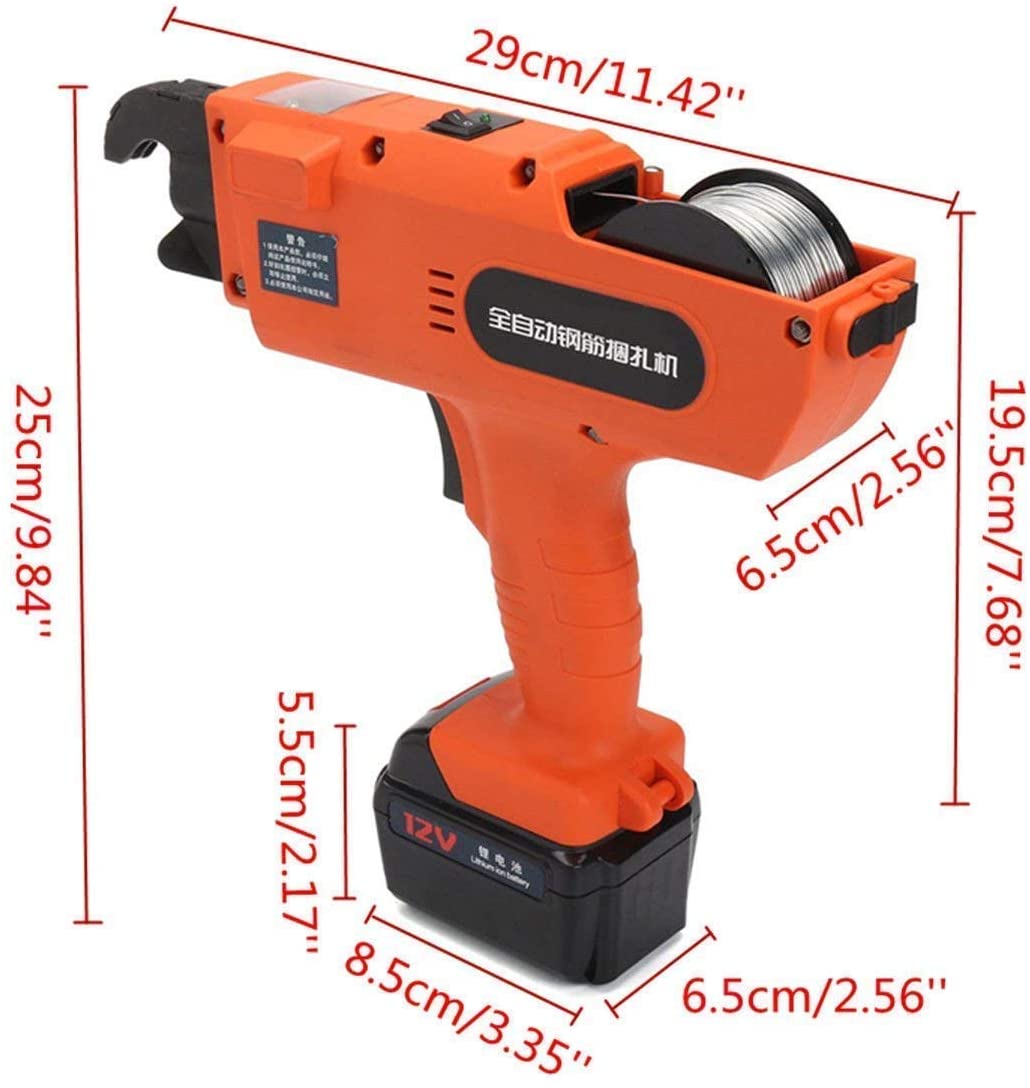

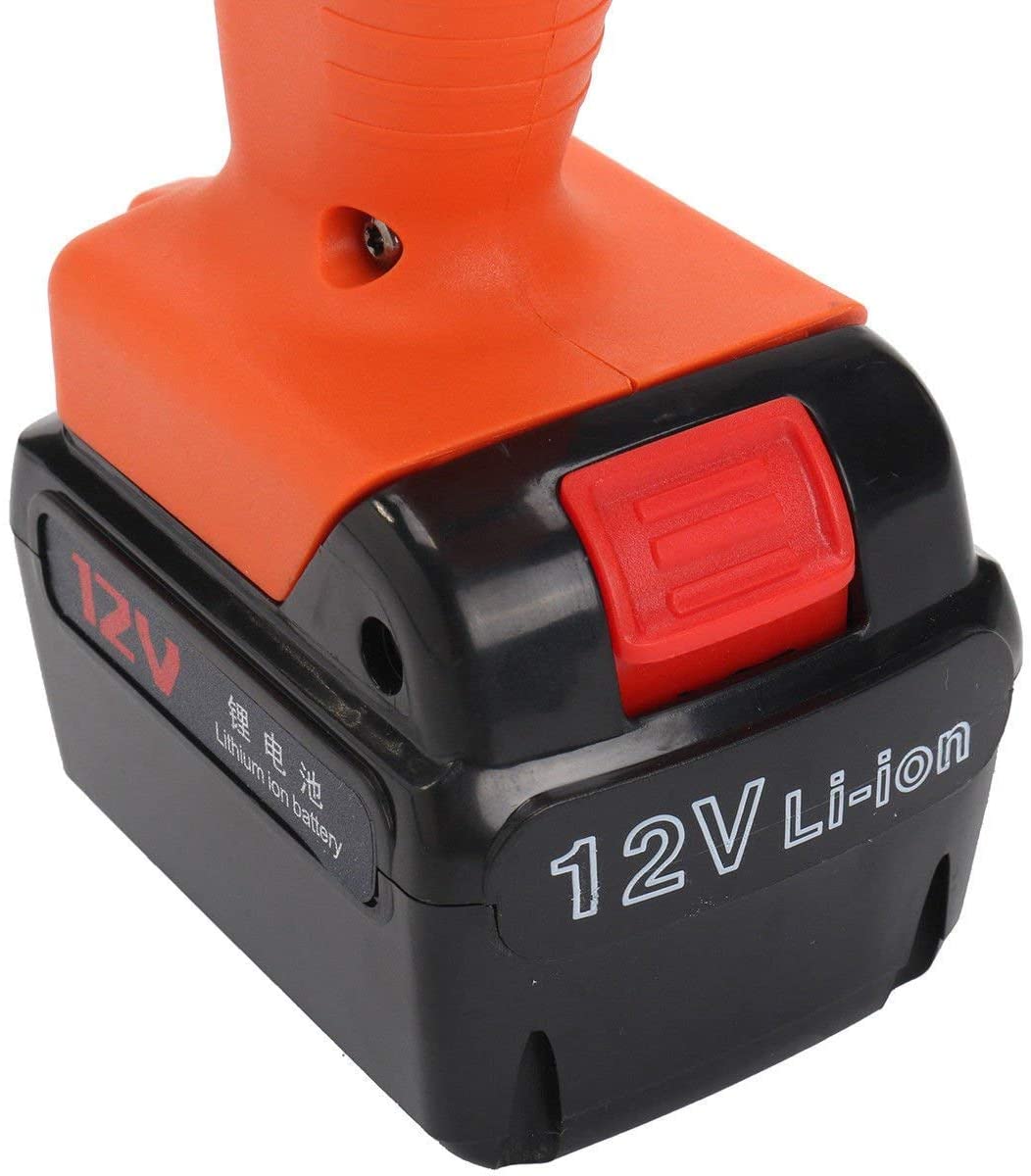

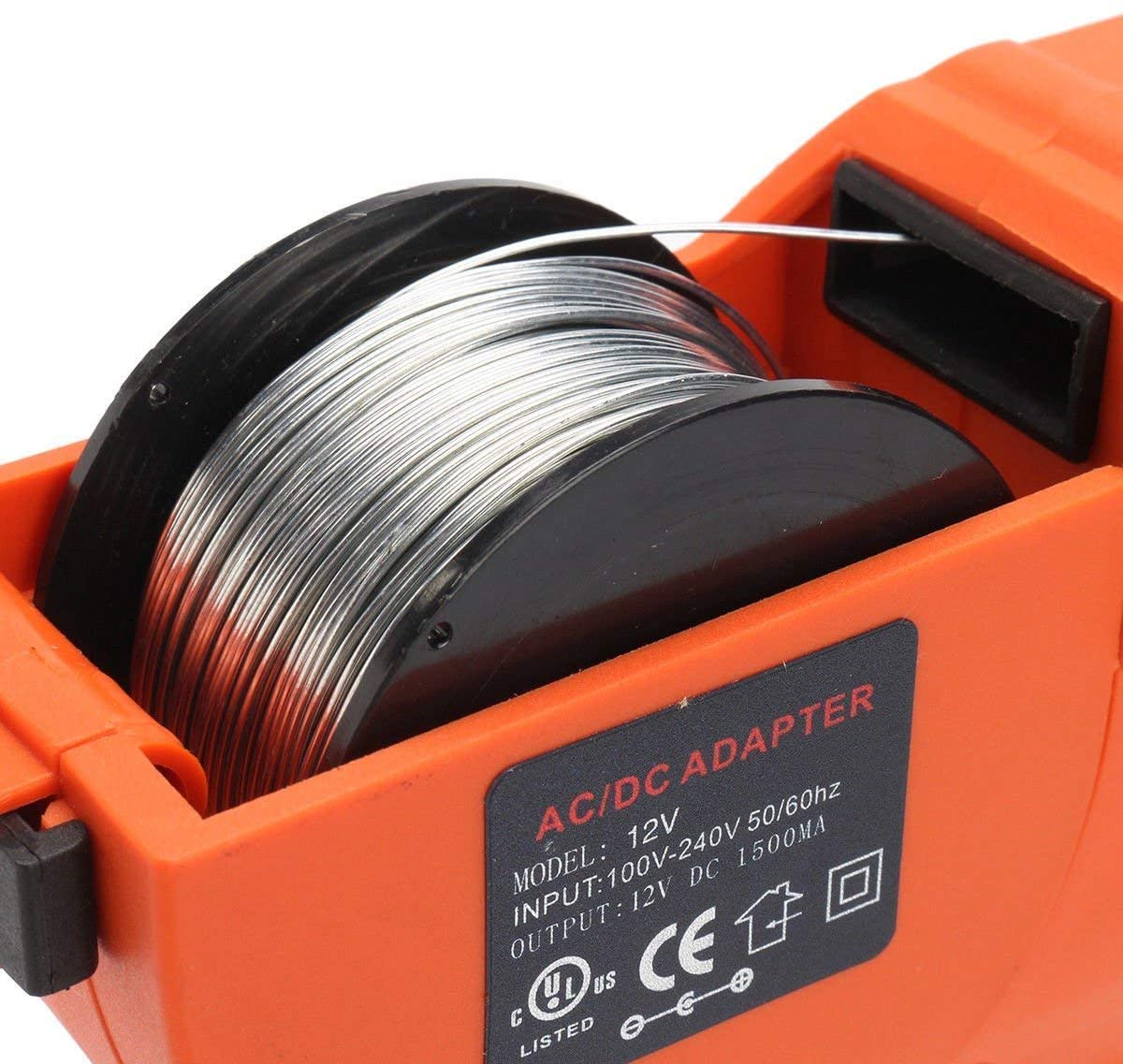

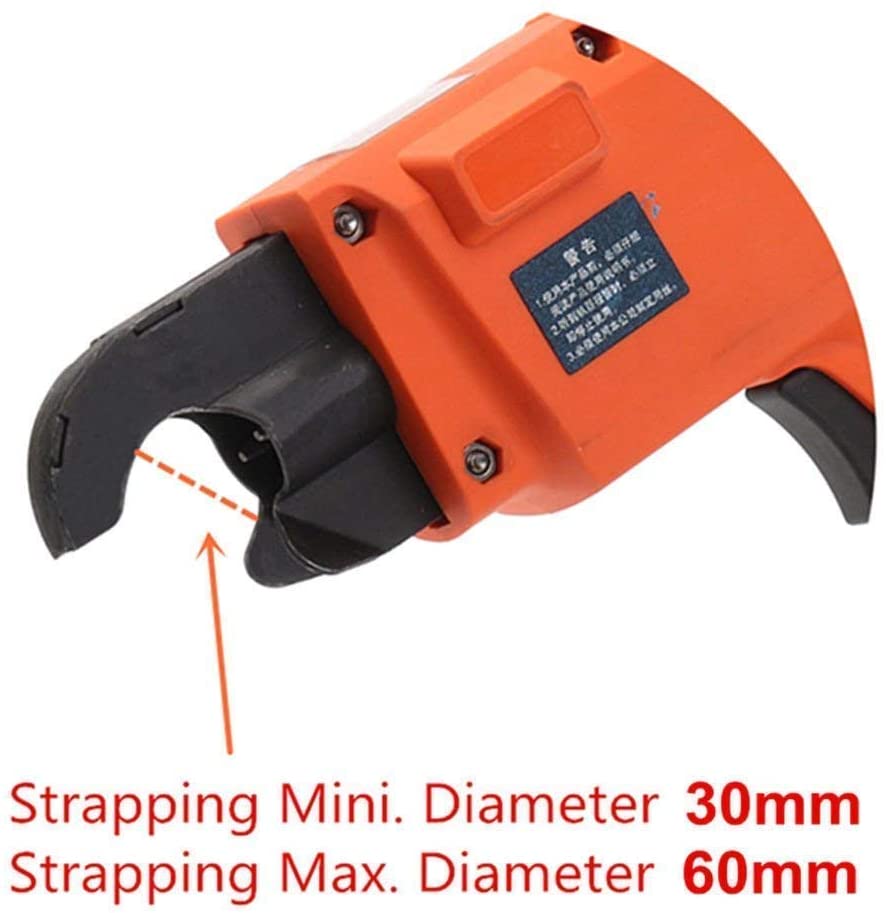

Specifications Color: Orange Material: Plastic + Metal Voltage: 12V Battery: 12V Lithium Ion Batteries Battery Capacity: 13200 Mah Battery Charging Time: 1.5 hours full filling Tying Wire Diameter: 0.8mm Tying Wire Length: more than 110 m Applicable Scope Of Steel Strapping: 30mm - 60mm Knot Wire Length: 40cm and above Knot Number Per Charge: 3000 times Knot The Required Time: 0.8 seconds at a time Cable Length: 95cm / 37.40''(appr.) Box Size: (L)X(W)X(H) 42X30X10cm / 16.54''X11.81''X3.94''(appr.) Machine Size: 290 mm * 65 mm * 195 mm / 11.42''x2.56''x7.68''(appr.)

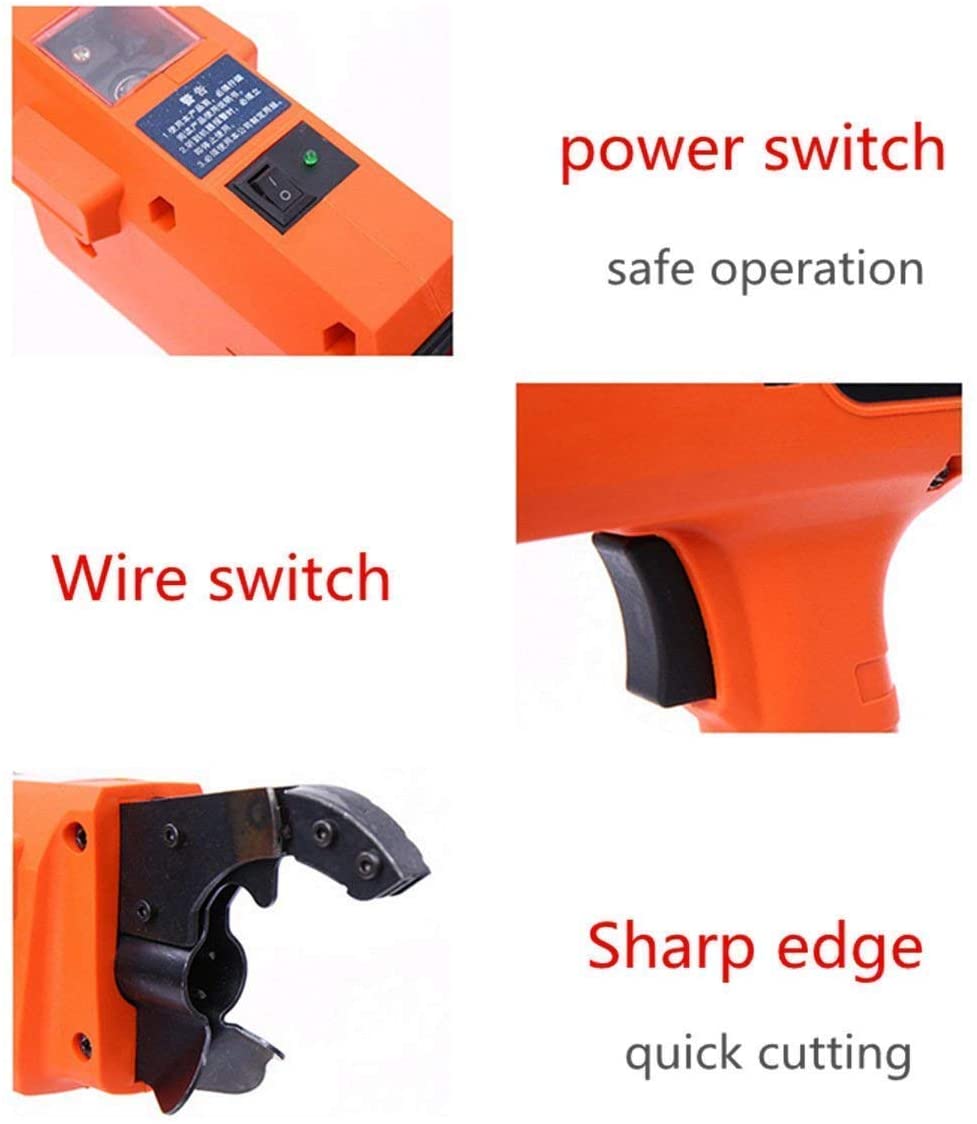

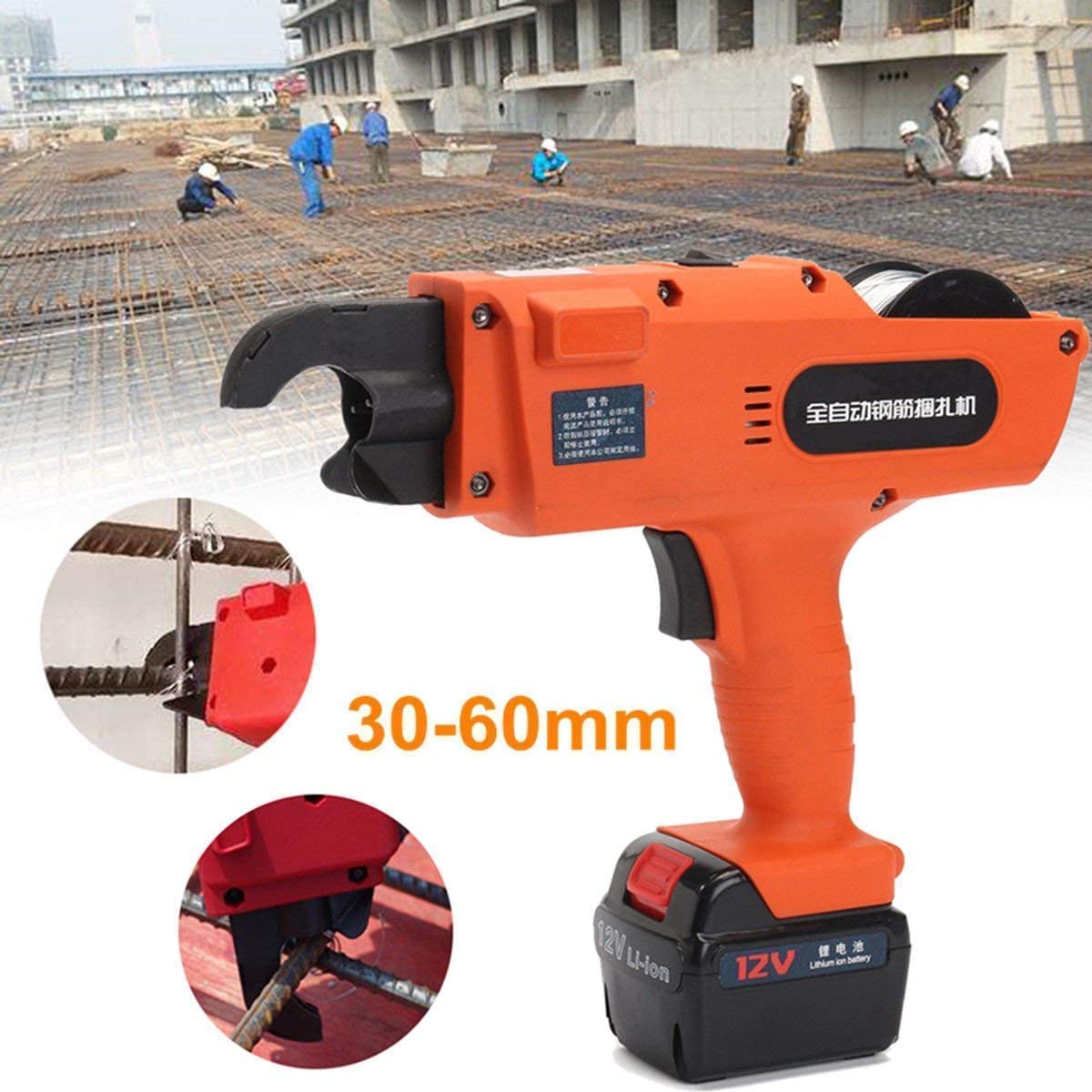

Operation Instructions 1. The rebar tirer's jaws are stuck to the intersection of the steel bars, and the steel bars are hooked at 45 degree angles. Note: There can be no barrier between the mouth of the jaws and the wire. 2. Press the start switch, the rebar tirer machine carries on the work (spins, hinges tightly, cuts off) Note: Press one button at a time, do not probe the jaws at work. 3. When automatic completion, the jaw from the steel bar intersection and then pull back, complete the process and prepare for the next binding. 4. When the binding process is not completed, do not unplug the machine in advance, otherwise it will cause the bundling of the goods tied skidding.
Operating Skills 1. In use, the left tilt 45 degrees after banding, the next time the banding into a right tilt 45 degrees banding, left and right alternately banding. 2. When the machine is about to tighten, the machine will appear slightly shaking, while holding the hand of the machine not too tight, you can relax properly.

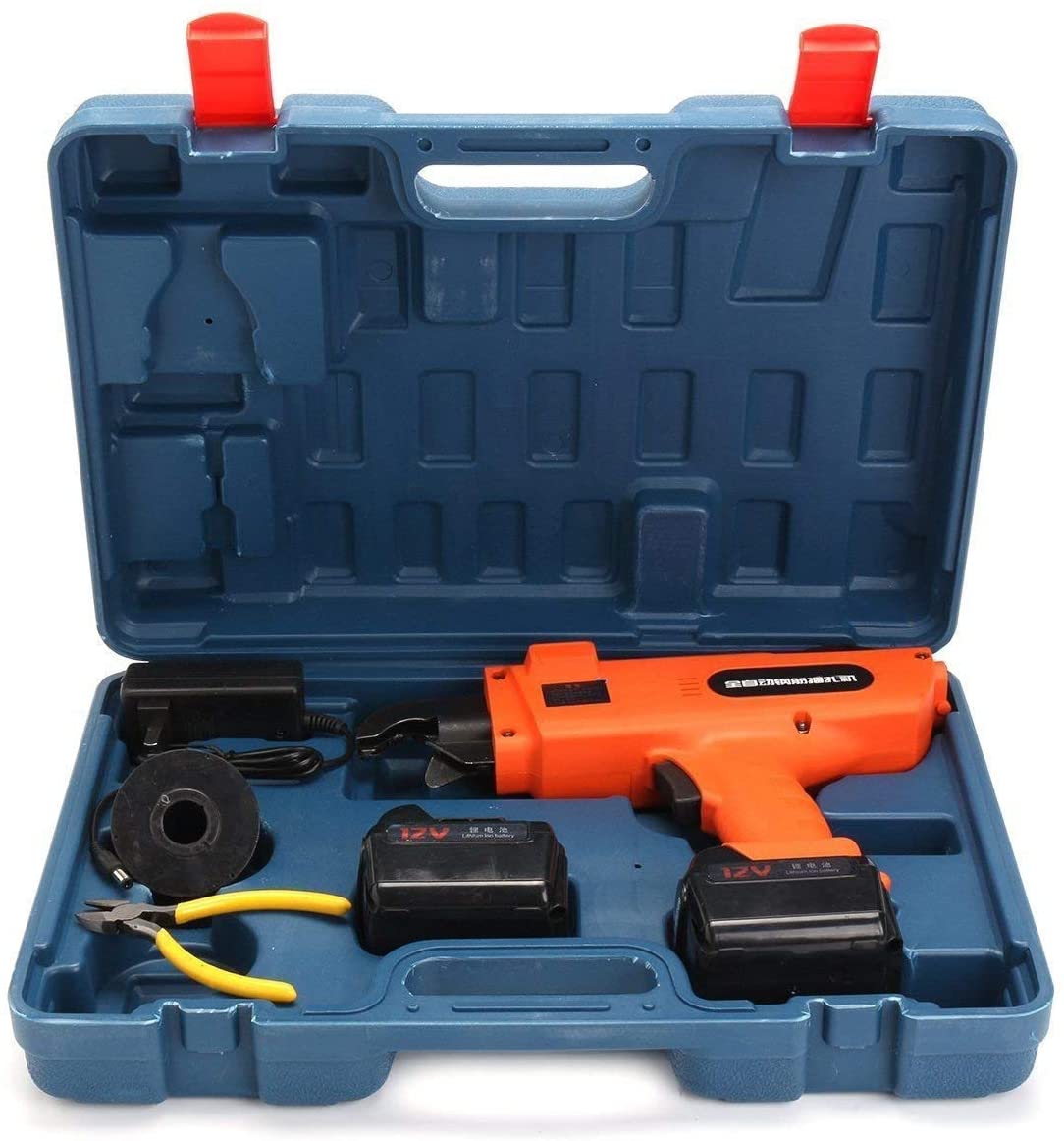

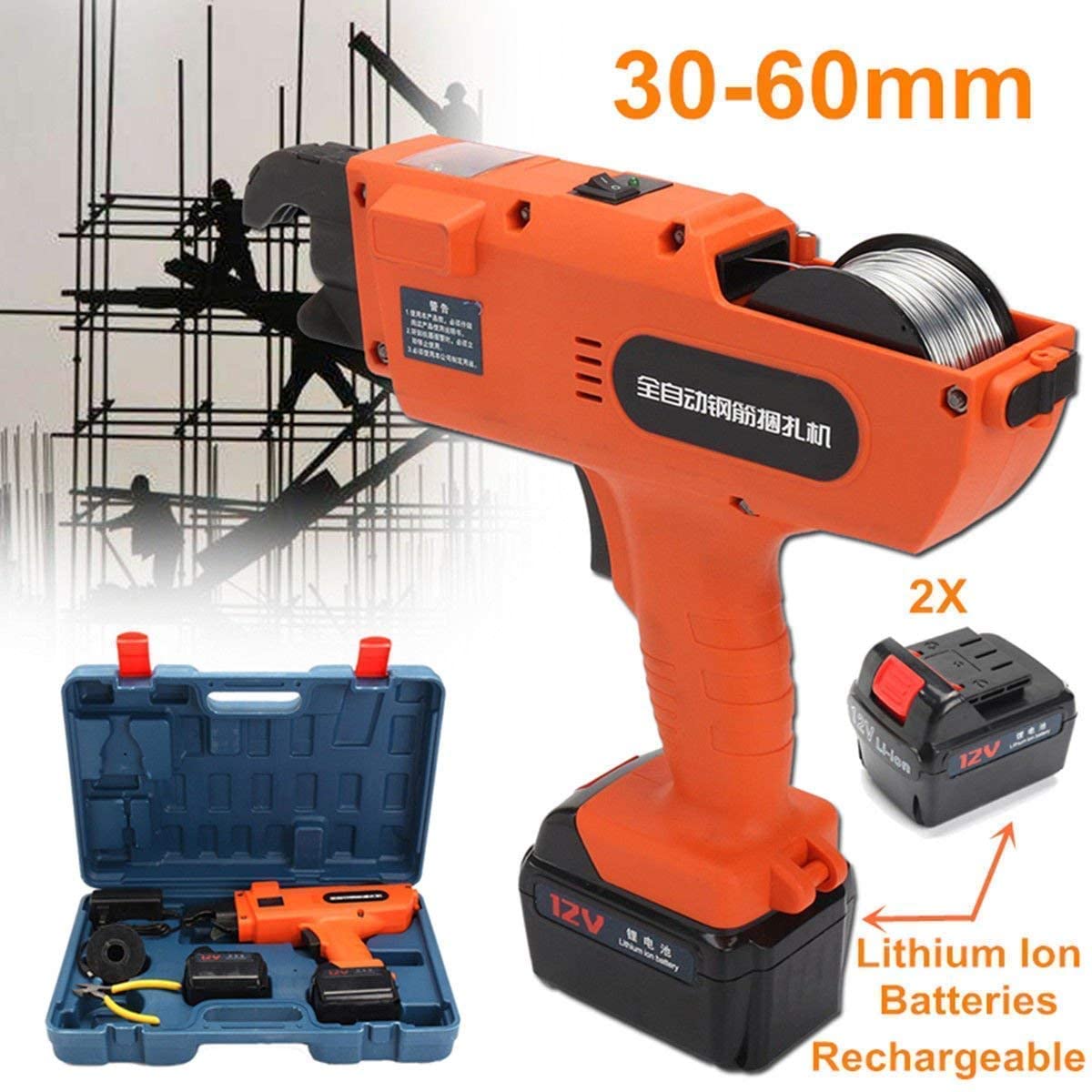

Package included: 1X Tying Machine 1X Pliers 1X Charger 1X Storage Box 2X Lithium Ion Batteries 2X Tying Wire (0.8 mm x 110 m/roll)
