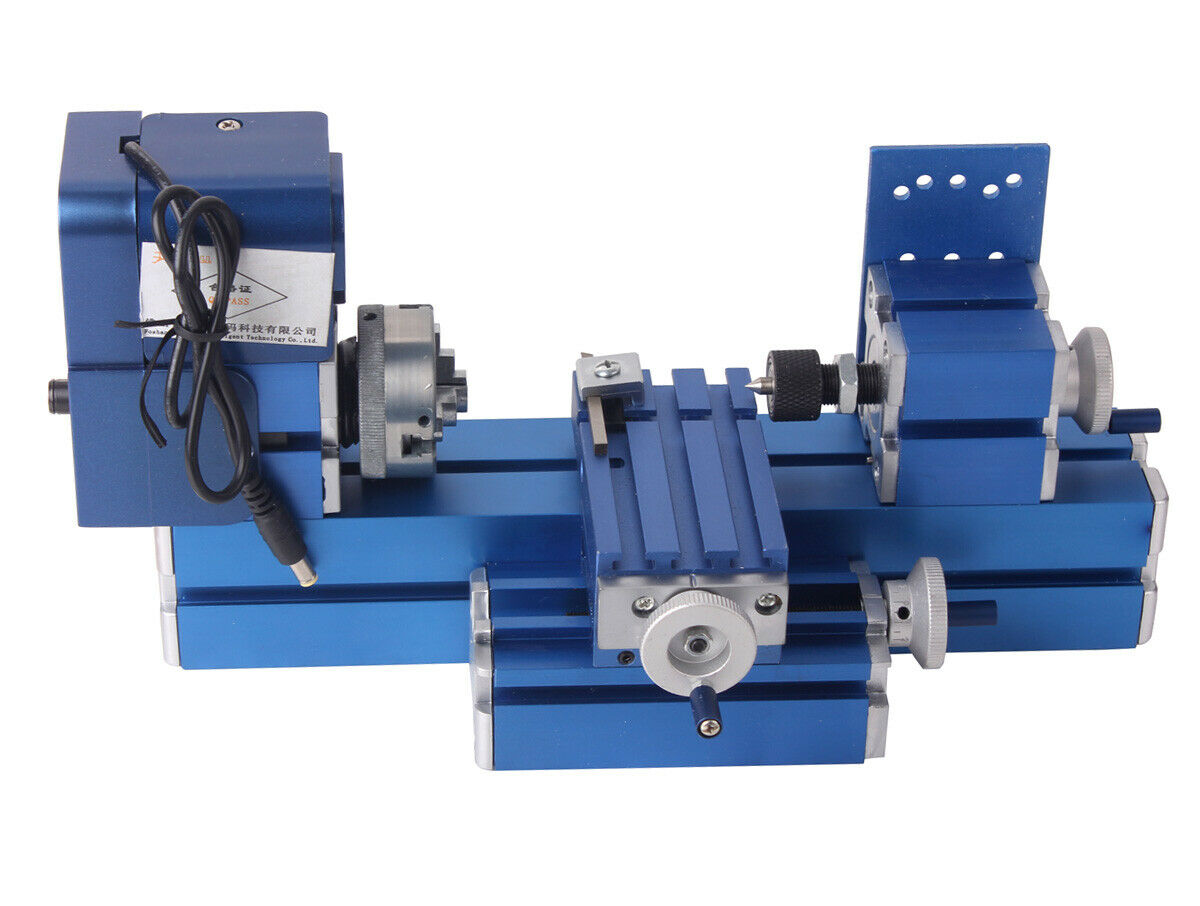

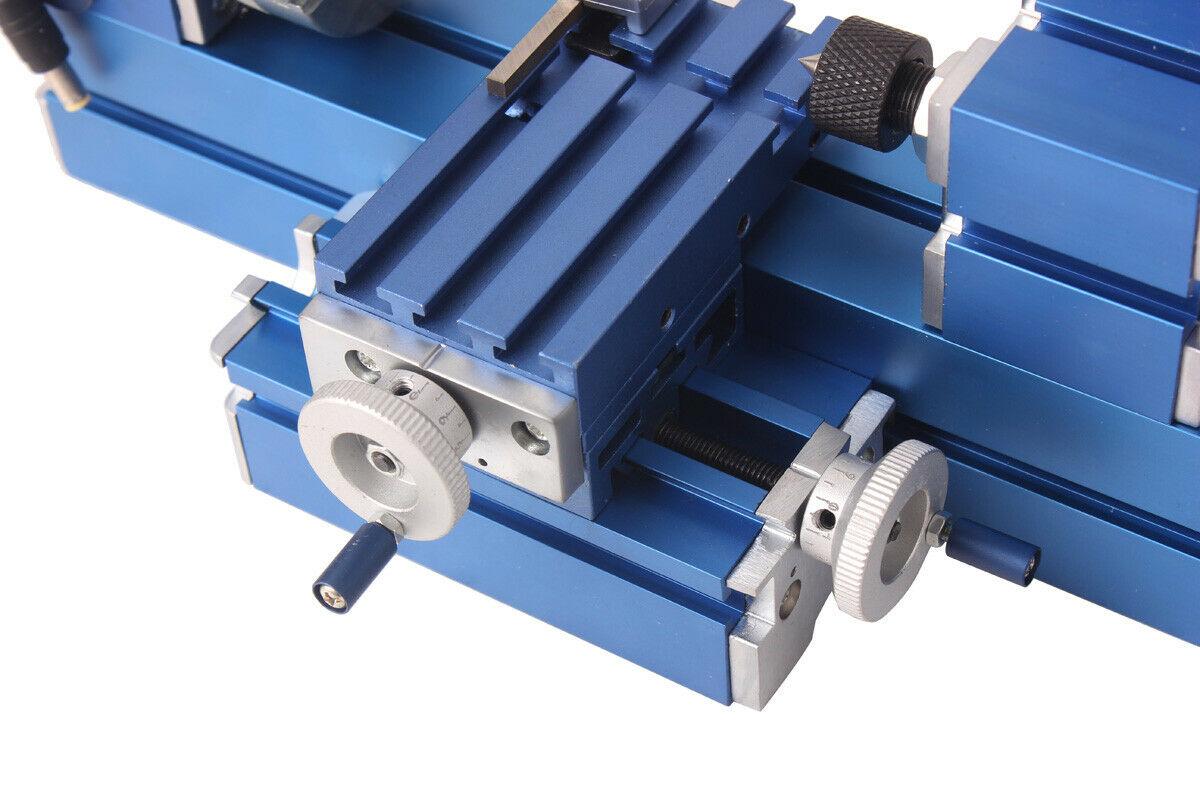

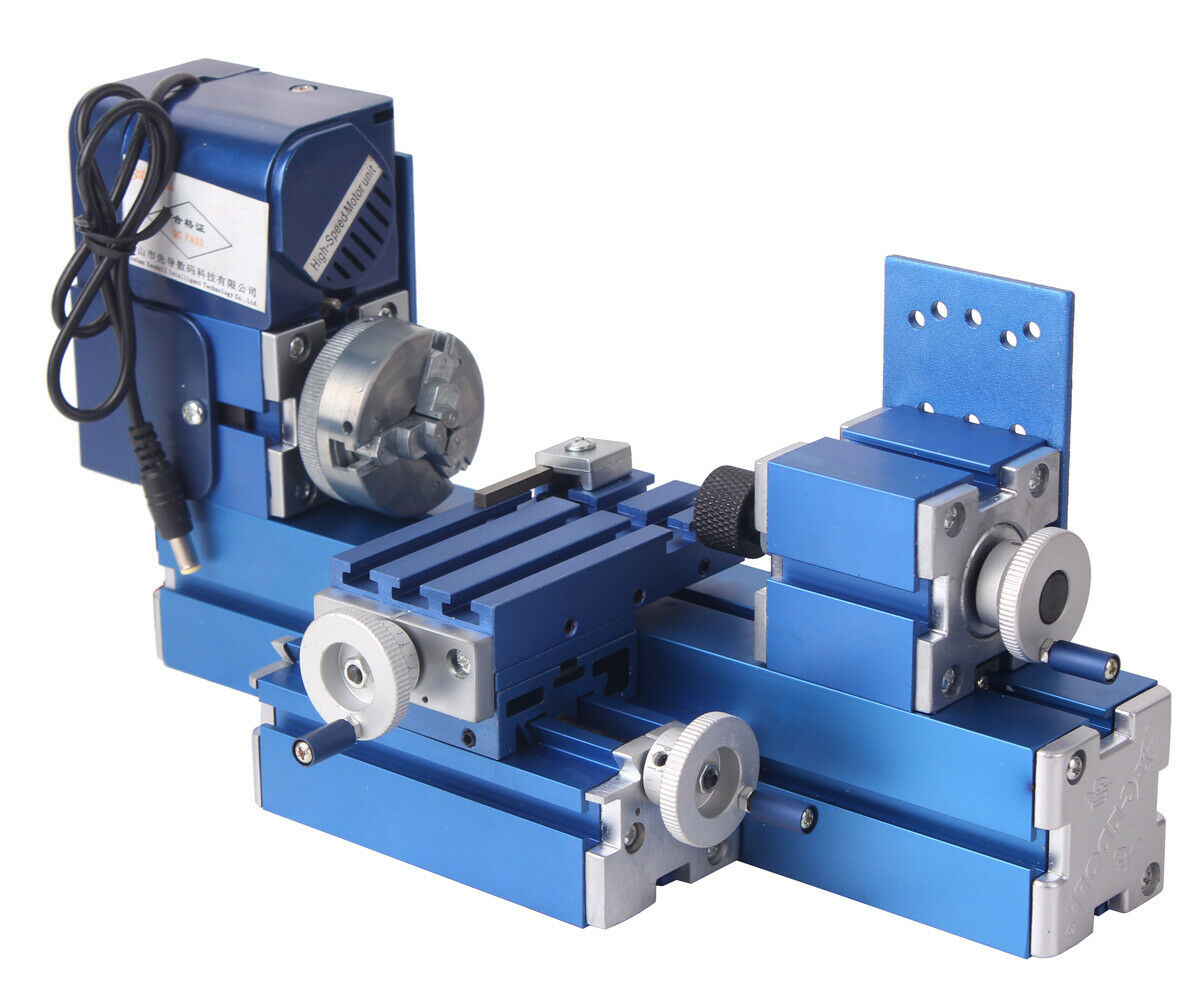

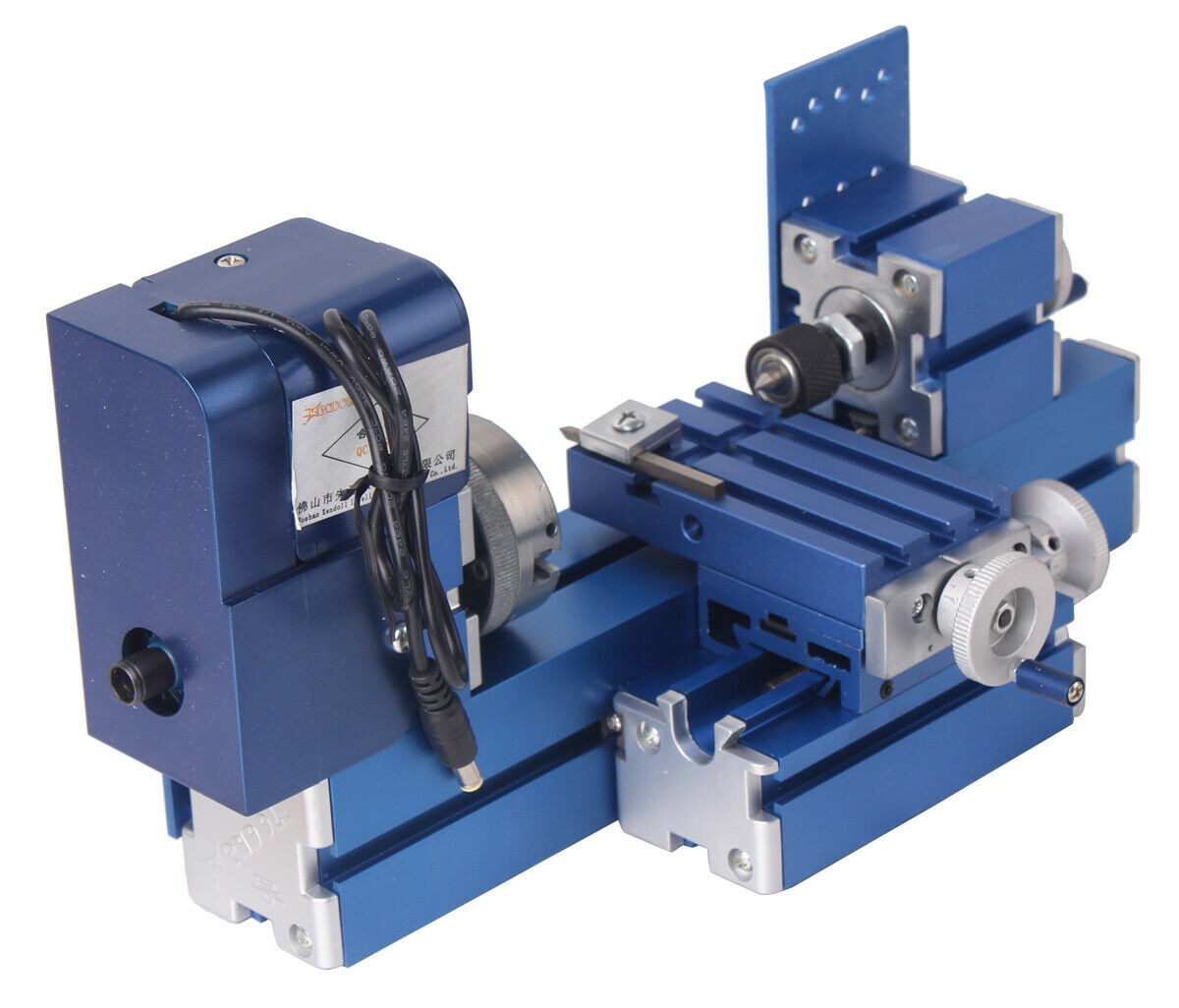

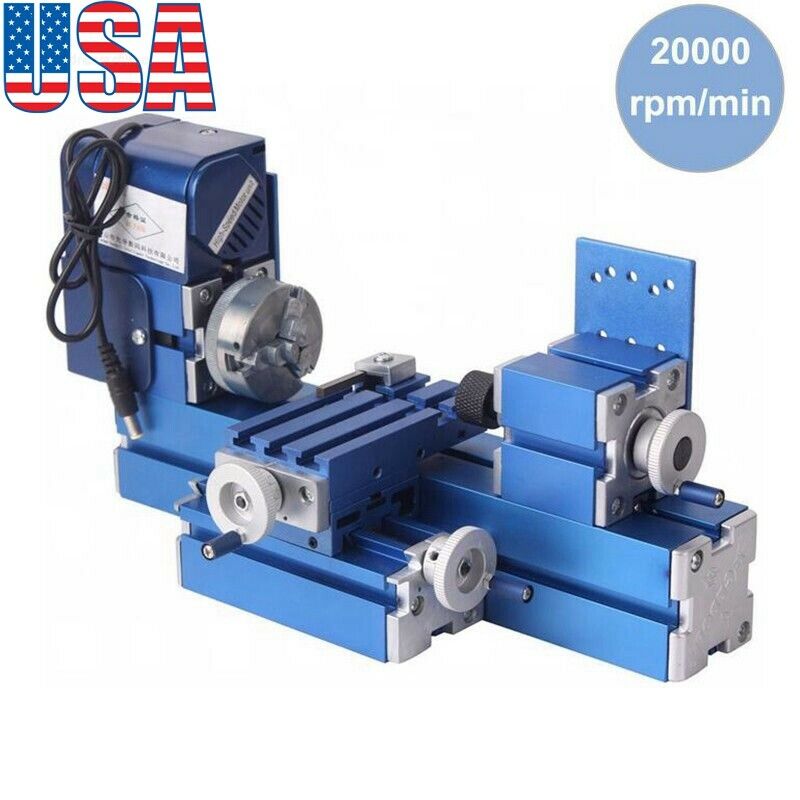

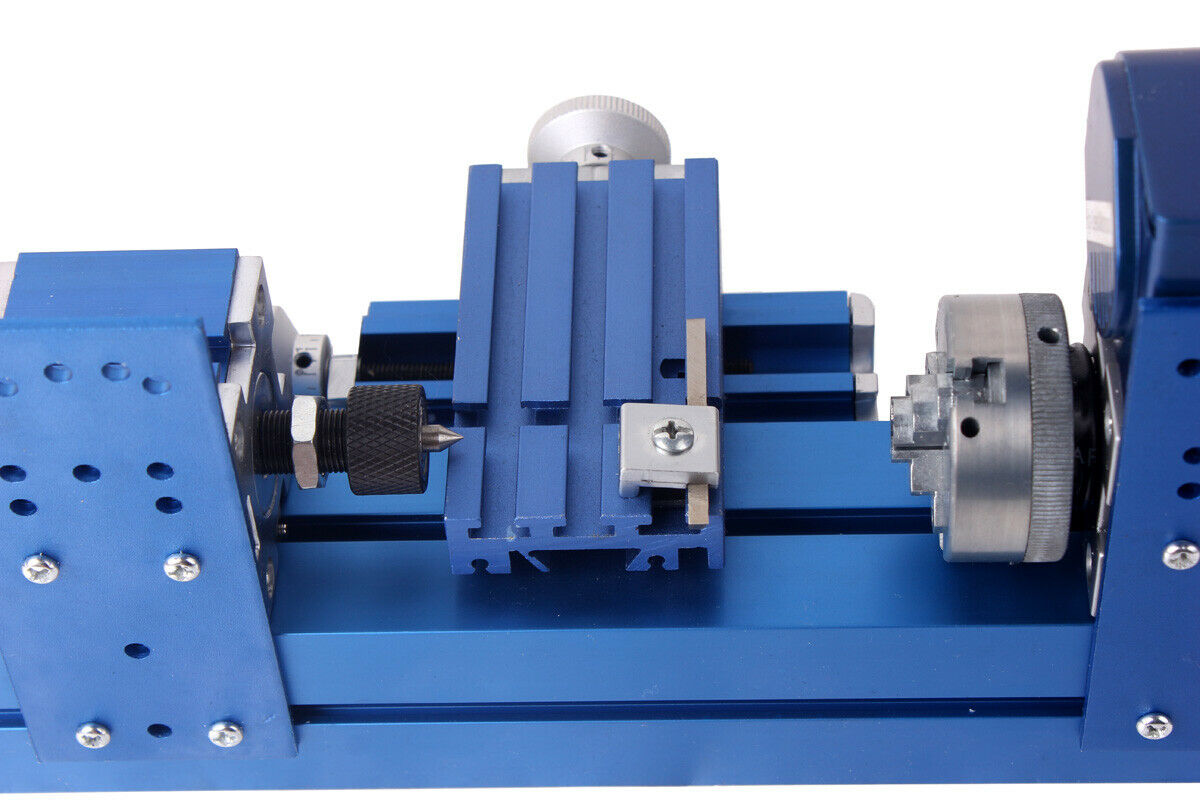

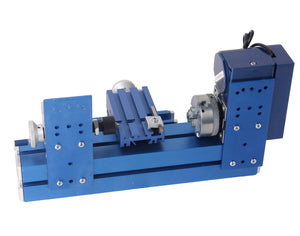

Powerful Metal Lathe Machine Benchtop Wood Lathes with Motorized Motor 3000r/min
Powerful Metal Lathe Machine Benchtop Wood Lathes with Motorized Motor 3000r/min
Powerful Metal Lathe Machine Benchtop Wood Lathes with Motorized Motor 3000r/min
Powerful Metal Lathe Machine Benchtop Wood Lathes with Motorized Motor 3000r/min
Powerful Metal Lathe Machine Benchtop Wood Lathes with Motorized Motor 3000r/min
Powerful Metal Lathe Machine Benchtop Wood Lathes with Motorized Motor 3000r/min
Powerful Metal Lathe Machine Benchtop Wood Lathes with Motorized Motor 3000r/min
Powerful Metal Lathe Machine Benchtop Wood Lathes with Motorized Motor 3000r/min

Powerful Metal Lathe Machine Benchtop Wood Lathes with Motorized Motor 3000r/min

Regular price $259.99 Sale price $179.99
Free Shipping to USA and Worldwide

Description:

The lathe machine is a machine tool which is used to remove metals from a workpiece to give a desired shape and size. In other words it is a machine that is used to hold the workpiece to perform various metal removing operations such as turning, grooving, chamfering, knurling, facing, forming etc with the help of tools.

Main parts of the metal lathe machine:

The main components of the main shaft box, intermediate block, connecting block, tailstock, large slider, small slider, hand wheel, support and so on are made of metal. The quality of the product is improved, more durable and more precise.

Specification:

Input voltage:
AC100V~240V 50/60HZ
Output voltage :
DC12V 2A
Motor rated power:
 24W
Motor speed:
High speed motor 20000r/min ± 15%
Low speed motor:
135 mm
Low speed motor:
10000r/min ± 15%
Spindle speed:
high speed motor 3000r/min±15%
Low speed motor:
1600r/min ± 15%
Spindle jump:
 <0.1 mm
Large slider stroke:
45 mm
Small slider stroke:
35 mm
Center height:
25 mm
Center distance:
110 mm
Three-jaw chuck clamping diameter:
13 mm positive claw, 45 mm reverse claw
Handle scale:
0.1 mm/division
Packing size:
230 mm × 200 mm × 315 mm
Weight:
2.2 KG
Connection method:
M12 * 1 screw hole
Minimum clamping size:
1.5 mm × 1.5 mm
Maximum clamping size:
 18 mm × 18 mm
Processing ability:
Process soft metals such as copper and aluminum.

Package include:

1x A set of lathe
