Pneumatic Air Powered Wire Terminal Crimping Machine Crimp Tool Crimper AM-10 with A03C Die set
Pneumatic Air Powered Wire Terminal Crimping Machine Crimp Tool Crimper AM-10 with A03C Die set
Pneumatic Air Powered Wire Terminal Crimping Machine Crimp Tool Crimper AM-10 with A03C Die set
Pneumatic Air Powered Wire Terminal Crimping Machine Crimp Tool Crimper AM-10 with A03C Die set
Pneumatic Air Powered Wire Terminal Crimping Machine Crimp Tool Crimper AM-10 with A03C Die set
Pneumatic Air Powered Wire Terminal Crimping Machine Crimp Tool Crimper AM-10 with A03C Die set
Pneumatic Air Powered Wire Terminal Crimping Machine Crimp Tool Crimper AM-10 with A03C Die set
Pneumatic Air Powered Wire Terminal Crimping Machine Crimp Tool Crimper AM-10 with A03C Die set
Pneumatic Air Powered Wire Terminal Crimping Machine Crimp Tool Crimper AM-10 with A03C Die set

Pneumatic Air Powered Wire Terminal Crimping Machine Crimp Tool Crimper AM-10 with A03C Die set

Regular price $319.89 Sale price $259.89
Free Shipping to USA and Worldwide

AM-10 Pneumatic Crimping Tool:
Pneumatic Wire Crimping Tool makes crimping A03C wire as simple as pressing a hand or foot switch.It helps reduce operator fatigue. Include the fully-adjustable bench mount assembly with foot switch, and you are free to concentrate on aligning the wire and terminal, to crimp faster with fewer mistakes.Our pneumatic tool system allows you to continue using most of your existing compatible die sets.

More Details:
Non-Insulated Terminals=10mm2,Insulated Terminal <=6mm2,Wire-end ferrules<=25mm2
Application air pressure 0.4-1Mpa
Crimping Force:13.5KN, weight:5.6kg,External Dimension:260*120*140mm
Default Crimping Die sets :A03B,A10,A101,A1016,A04WF
The pneumatic crimper is suitable for many kinds of terminals,fit for crimping insulated and non-insulated cable end-sleeves

How to use?
1.Put the terminal about to be crimped in corresponding position of clamp.
2.put stripped insulated conductor into the terminal, push foot air valve and loose after crimping.
3.Then cut off gas supply. Dismount fix bolts on the clamp with L shaped spanner for safety.
4.Replace a desired clamp if necessary, screw the bolt tightly once more.
5.Please align the clamps well as they are used in pair.
6.After assembly, press foot-operated gas valve slowly to make the machine work at a rather low speed to check mounted die set.

Specification:
Model: AM-10
Work requirements: Min.5bar Max.8bar
Exhaust volume: 35L/min
Working Pneumatic Pressure: 0.4-1 Mpa
Ring Terminal: ≤25 mm²
Crimping Force: 13.5 KN
Ordinary Terminal: ≤10 mm²
Insulated Terminal: ≤6 mm²
Flow in Equipment: Compressed air
Gross Weight: 5.6kg

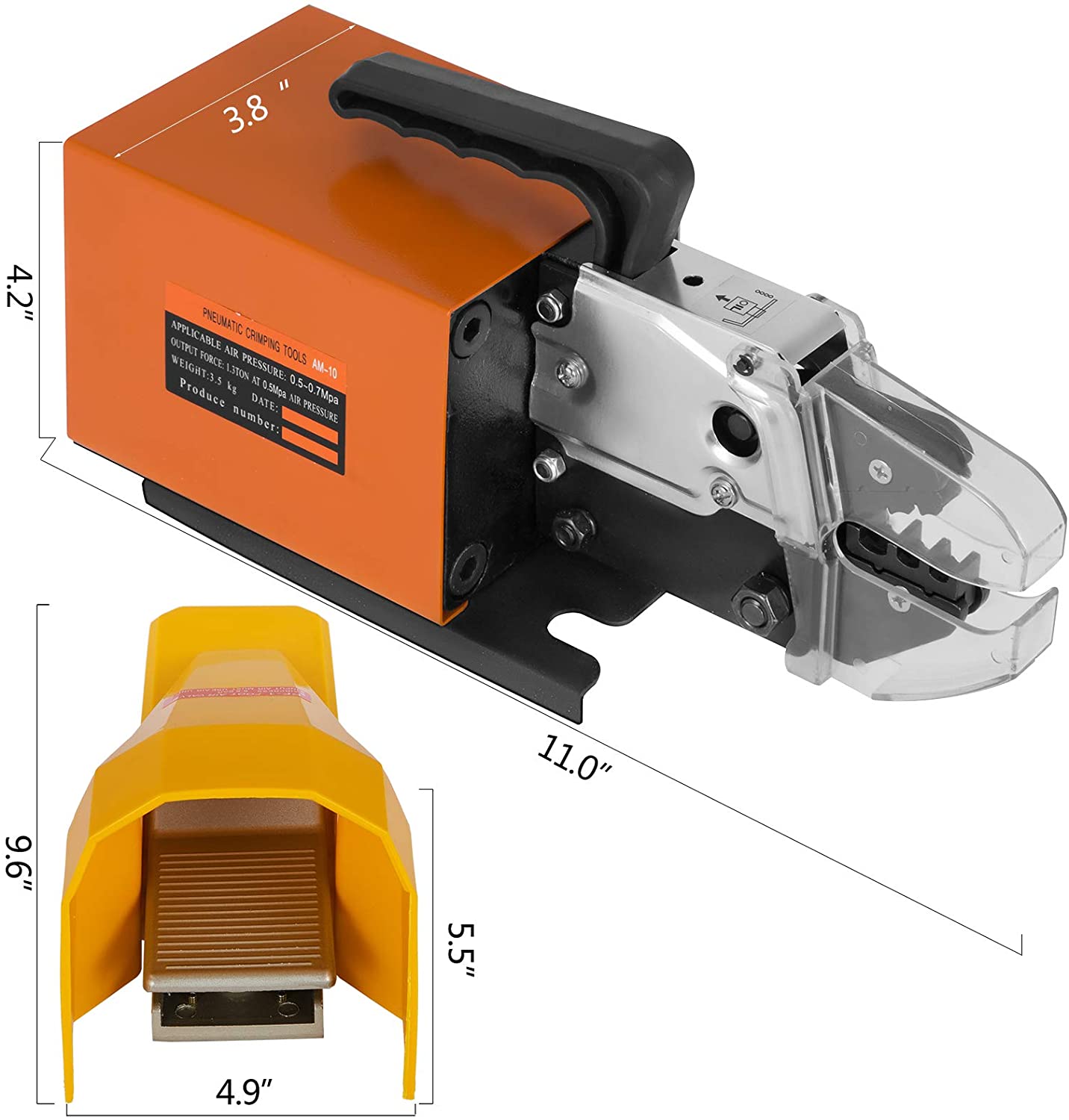

External dimension: 260mm * 120mm * 140mm

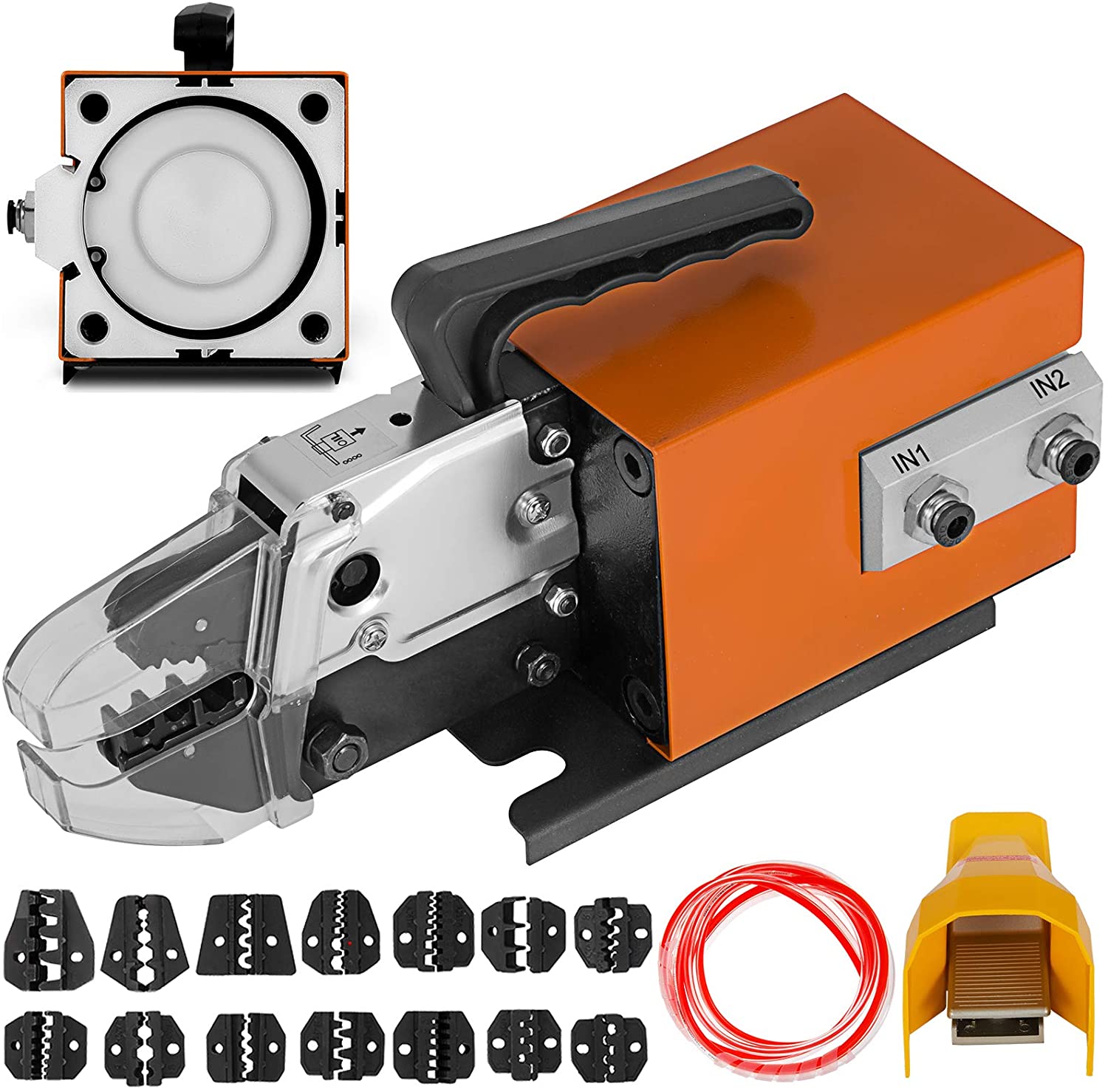

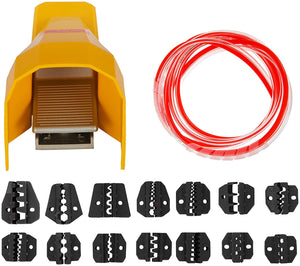

Package Content:
1 X Pneumatic Crimping Tool with 1 Die Set
1 X Foot Air Valve
2 X Air Pipes
