For Cylinder pressure gauge is special used to check the size of the gas pressure in the cylinder measuring tool. This Cylinder Pressure Tester is made of high quality alloy steel, plastics and rubber materials, durable and practical and it has the function of compression gauge test set for engine cylinders diagnostic tester.
CYLINDER COMPRESSION TEST AND DIAGNOSTIC: automotive engine compression tester kit is used for measuring pressure on gasoline engine cylinder quickly and accurately. The gauge readings assist to diagnose if there are following problems: valve sticking, carbon build-up, cracked cylinder head or defective main gasket, poorly seated or worn piston rings, burned or damaged piston.
WIDE USE OF SMALL ENGINE COMPRESSION TESTER: There are long flexible extension hose with 5 sizes (M10*1.0 M12*1.25 M14*1.25 M16* 1.5 M18* 1.5) selectable adapters in the engine compression test kit, widely suitable for most types and depth spark plug well on gasoline petrol gas fuel engine cylinder, which is common in motorcycle, car, ATV, snowmobile, dirtbike, lawn mower, chainsaw etc.
UNIVERSAL AUTO CYLINDER PRESSURE TEST GAUGE CONNECTORS: The straight and angled push-on connectors in the cylinder compression tool kit are equipped with rubber tapered tip for easy and quick installation, you just need to push and hold it to seal against the cylinder head, rather than screw to tighten like M10*1.0 M12*1.25 M14*1.25 M16* 1.5 M18* 1.5 appropriation adapters.

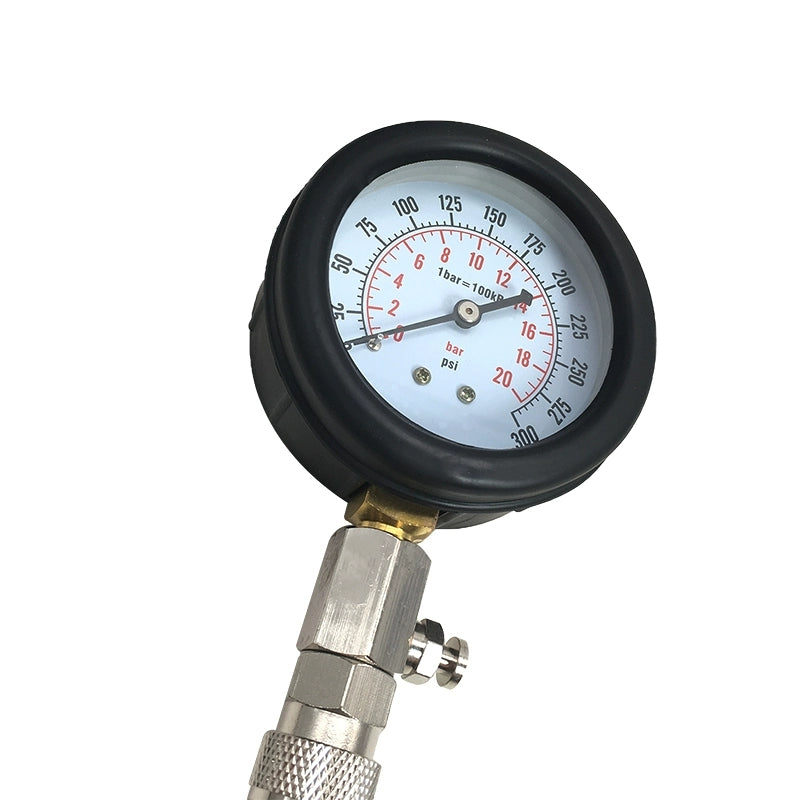

SUPERIOR GAS COMPRESSION TESTER PRESSURE GAUGE: Compression gauge adopts rubber cover protected 3" large dial with dual range color coded scale for easy reading. Lightweight and portable, it is easy for you to use in the daily life.
Material: Alloy Steel + Plastics + Rubber
Dimensions: (12.12 x 8.58 x 2.28)" / (30.8 x 21.8 x 5.8)cm(L x W x H)
Weight: 21.16oz / 600g
Dual Color Scale with: 0-300 PSI, 0-20 kPa
Fittings: M10, M12, M14, M18 (Male, With "O" Ring)
Spark Plug Aapters: 14mm and 18mm
Adapter: M10*1.0/M12*1.25/M14*1.25/M16* 1.5/M18* 1.5

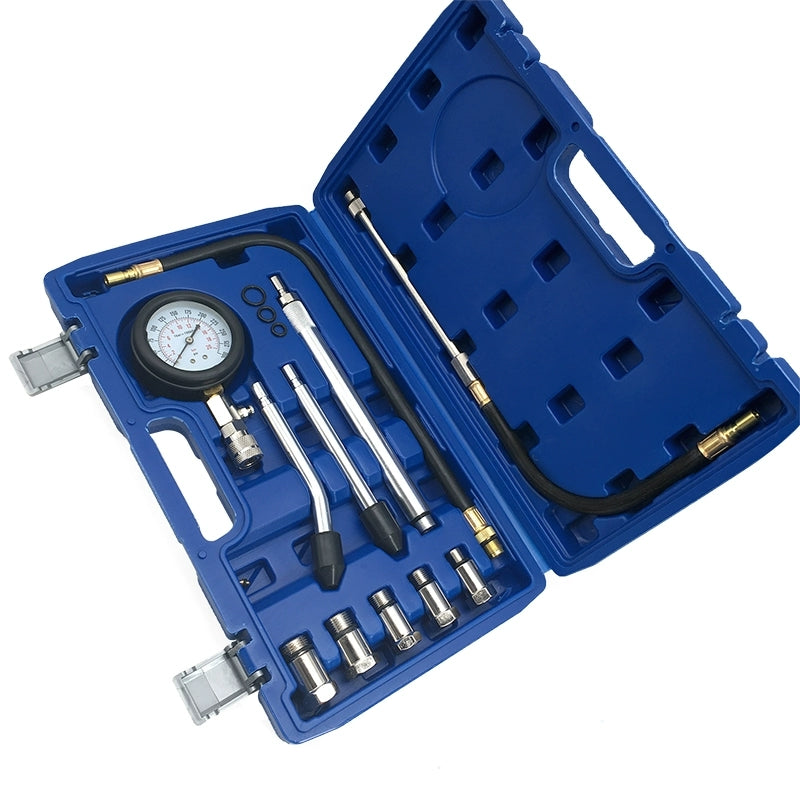

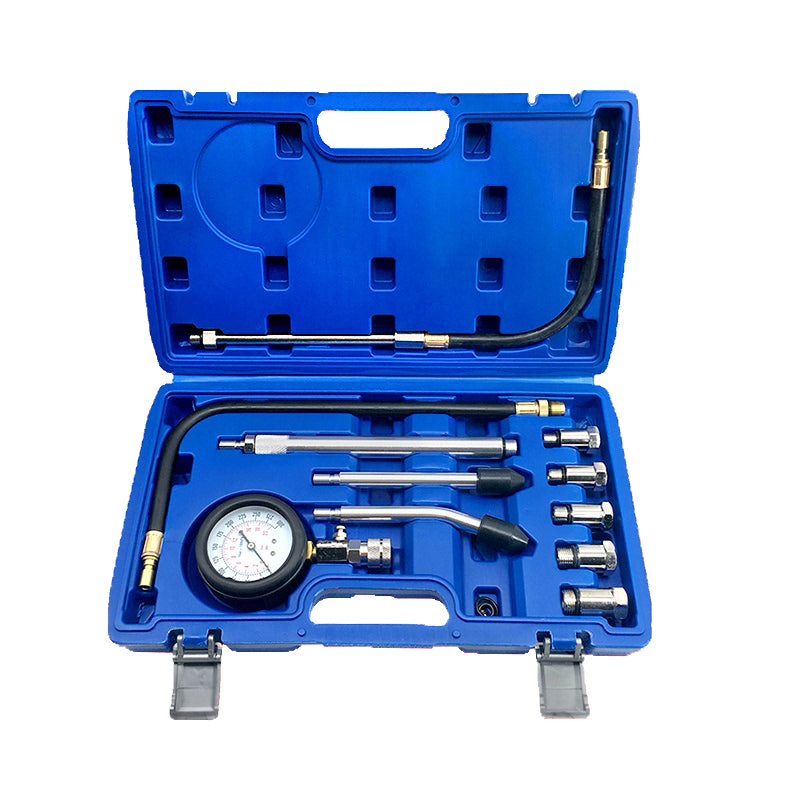

1 × Cylinder Pressure Gauge
2 × Long Pipe
2 × Metal Pipes

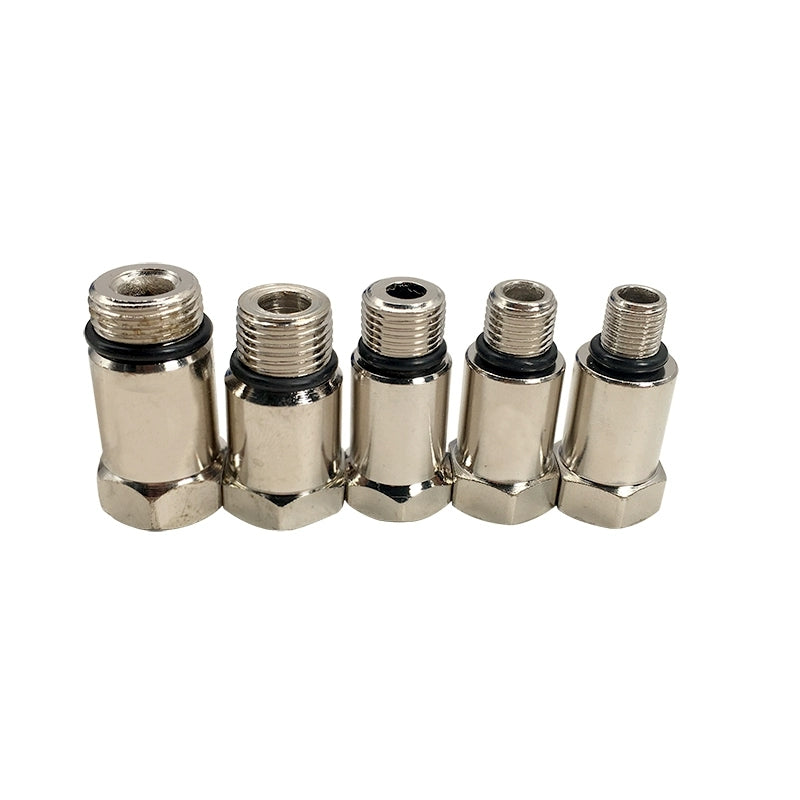

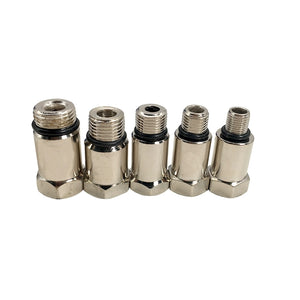

5 × Metal Adapetrs as picture show
