Multi-function Cross table For Milling Machine & Lathe 310*90mm

DIY Multifunction Mini compound bench Precision Cross table Sliding table.

Description:

1. Mini compound bench BG6300.The mini compound bench is especially suitable for use with the drill stand BG6112,BG6109B and bench drill machine of the BG5158 series.It may also be used with other suitable machine.The table is made of aluminum with adjustable dovetail gibs,ensuring minimum play.

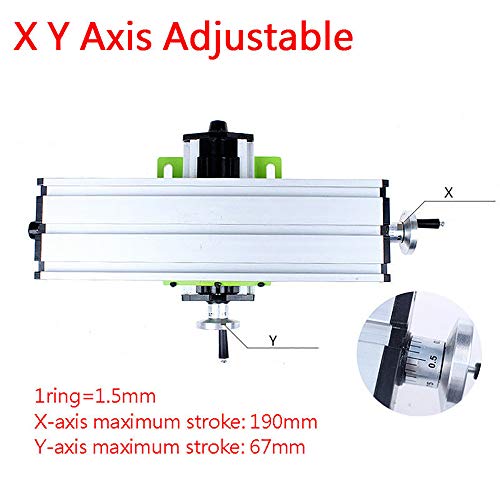

2. Three T-slots of the standard size 15x 8x 6mm are provided.The movable ruler scale eases the positioning of the table.Zero adjustable handwheels are calibrated to provide 1.25mm movement per revolution.One devision equals 0.05mm.Travel is 200mm on the X axis and 50mm on the Y axis.Table size is 310x 90mm with overall height 80mm.Two clamps are included.

Feature:

1. ✅ 1.The table is suitable for Mini Drill and drill bracket series. It can also apply to other suitable machines.

2. ✅ 2.The work table is composed of several adjustable dovetail slot aluminum alloy compositions, can ensure the minimum space and ensure the accuracy.

3. ✅ 3.The working table with three T shaped groove, standard size is 15x8x6mm.

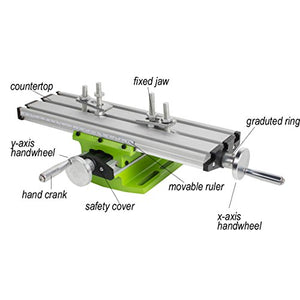

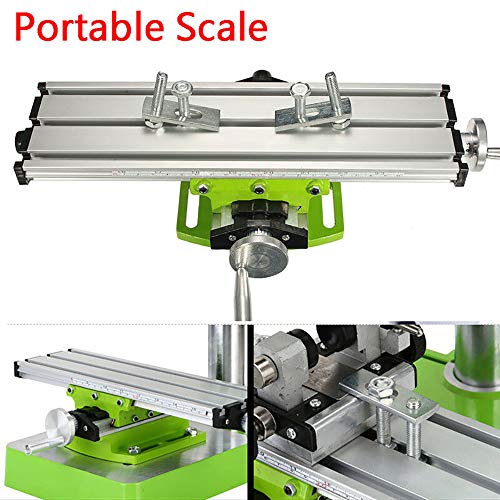

4. ✅ 4.Scale is in front of the movable positioning.

5. ✅ 5.Zero adjustment handwheel rotates a circle of 1.25mm. A lattice is equal to 0.05mm.

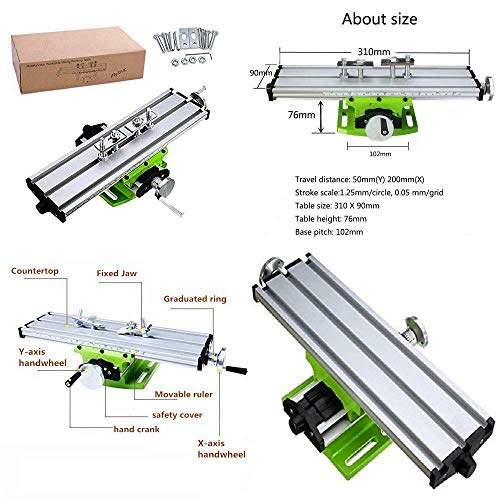

Parameter:

• Material: Aluminium Alloy

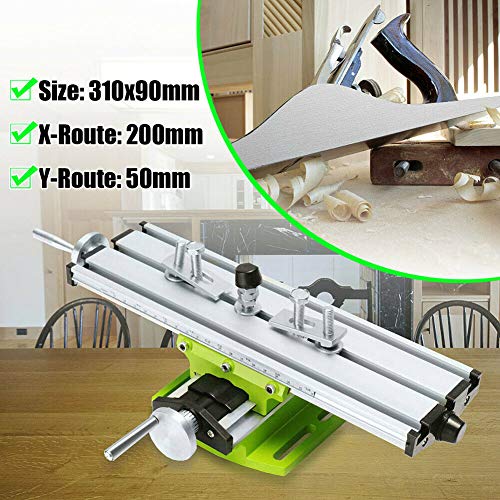

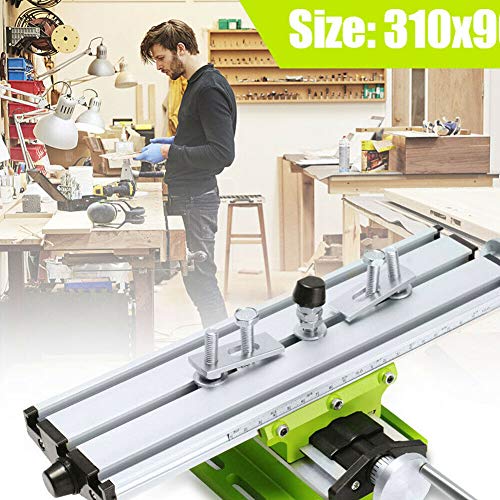

• Size: 310 * 90mm * 78mm

• X-Route: 200mm

• Y-Route: 50mm

• Distance of grooves: 34mm

• Scale travel: 1.25mm (circle), 0.05mm (one cell)

• Base pitch：102mm

Package Included:

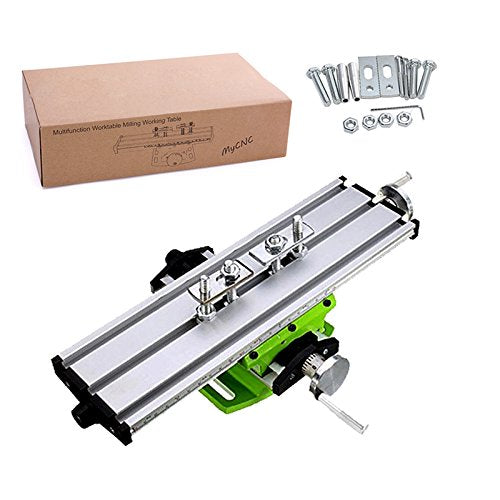

• 1 set of Compound bench(Bench drill is not include,English manual)
