Linear Stage Actuator 100-1000mm Manual Sliding Table Ballscrew Linear Guides Cross Slide Table SFU1605 Travel Length
Regular price
$132.69
Free Shipping to USA and Worldwide
Product Description:
1. 100% brand new and high quality
2. High precision, heavy load resistance
3. Long life, low coefficient of friction, versatility
4. The ball screw consists of a screw, nut and ball. The rotation movement into a linear motion, with a small frictional resistance.
5. Screw Specifications: Ball screw 1605
6. Guide rail diameter: 16mm
Specification:

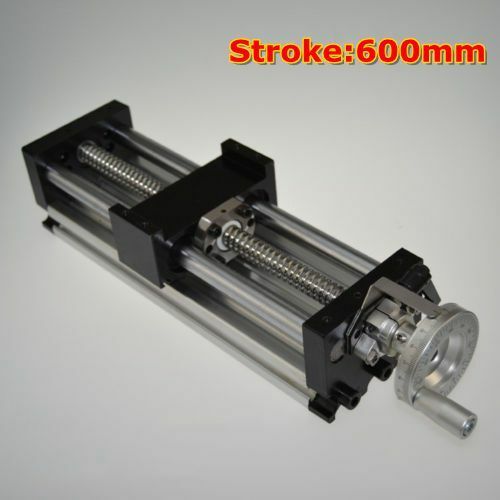

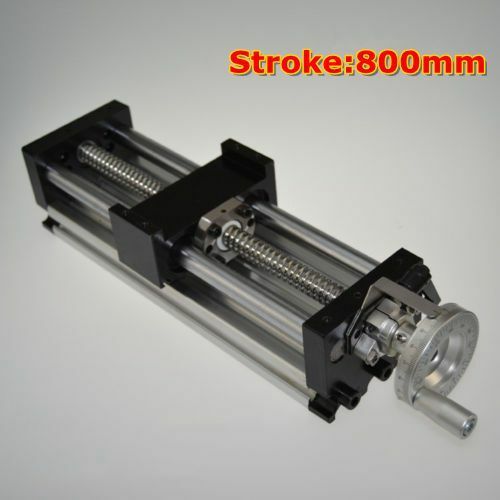

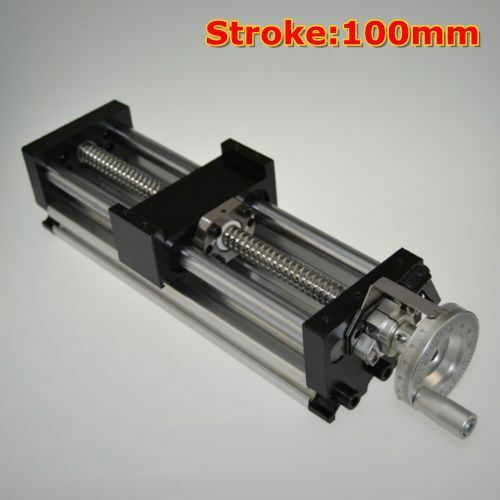

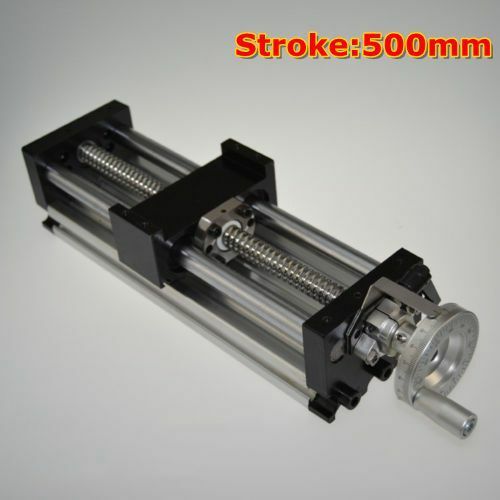

1.Stroke:100mm/200mm/300mm/400mm/500mm/600mm/700mm/800mm/900mm/1000mm
2. Horizontal load: 100 kg/ 90 kg / 80 kg / 70kg / 60kg /50kg / 40kg / 30kg / 25kg / 20kg / 15kg
3. Vertical load:50 kg / 45 kg / 40 kg / 35kg / 30kg / 25kg / 20kg / 15kg / 10kg / 5kg / 5kg
4. Ball Screw Type: 1605 ,Diameter 16mm, Lead 5mm ( Screw can be Replaced by 1610/1620/2020/2005 C7 Level )
5. Stepper Motor: Not included
6. Repeat Positioning Accuracy: ± 0.02mm
7. Mobile Panel Size: 60mm x 115mm
8. Material: Aviation Aluminum 6061

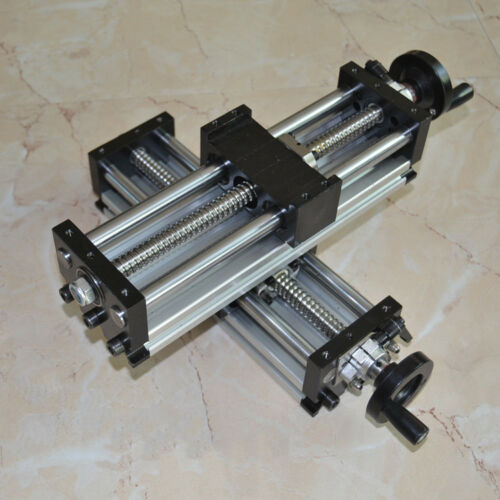

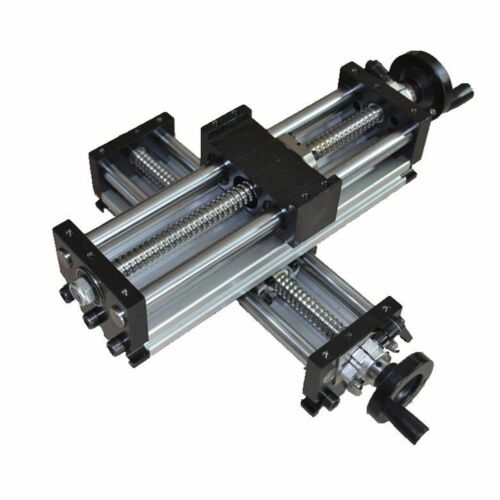

9. The Sliding Table is Convenient and Easy in use, Can be Directly Fold Cross Slide, Gantry Sliding Table, 3-axis, 4-axis, multi-axis Combination in use.
Package included:
1 x Ball screw slide(Choose Stroke Length by yourself)
