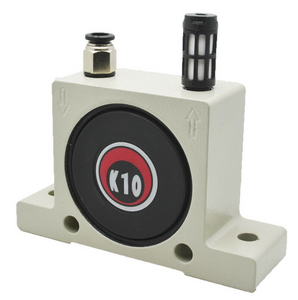

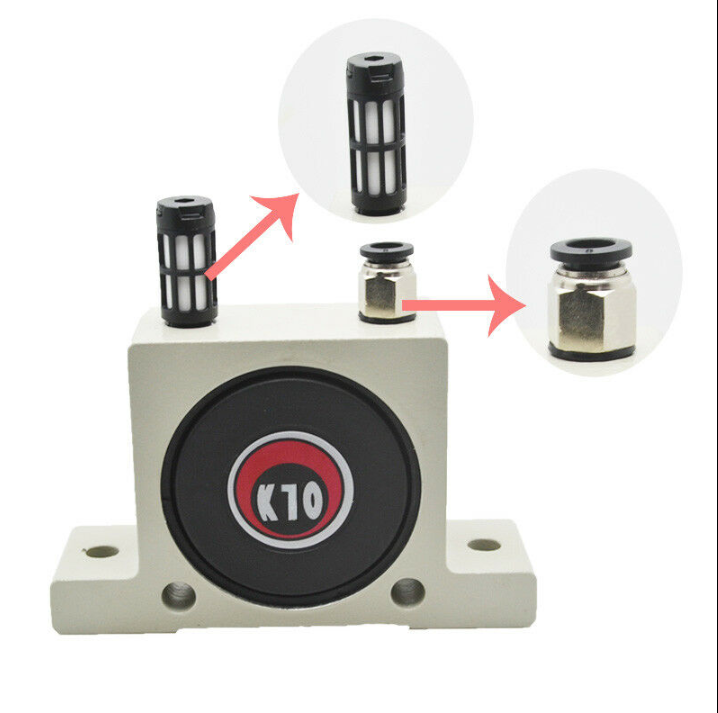

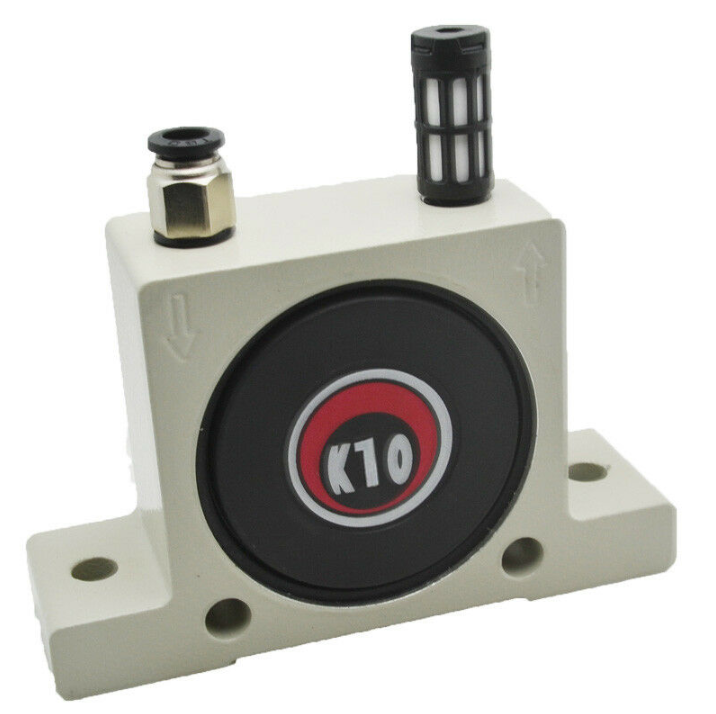

K10 Industrial Pneumatic Turbine Ball Vibrator With Silencer&Connector K-Series

Description:
A high speed range and eccentric working moments are combined in these Vibrators to produce a powerful vibration.The body is made from an extruded stove enamelled aluminium section and the hard coated
end plates enables the vibrator to be used in the food and pharmaceutical industries.The GT-turbine vibrators comply to current international noise regulations under factory test contitions.

Design:

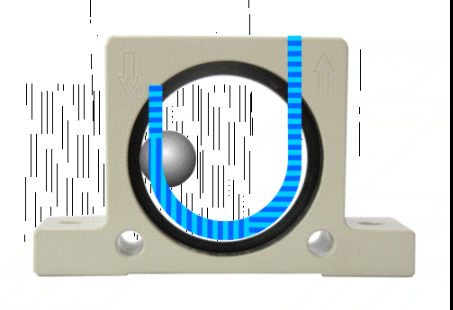

The vibration is produced by the centrifugalforce of the postive and negative unbalance moments in the rotor,the rotor is supported on two heavey duty,prelubricated ,matched shielded ball bearings,A special
long life grease ensures a long working life. The inner and outer raceways of the bearings are designed so that the bearings can be easily replace using only a pin-wrench.The end plates are fitted with right-andleft-hand threads and self-locking.

Specification:
1.1.Turbine type pneumatic vibrator
2.No lubrication only clean air is required
3.Low noise 60~75dBA
4.Compact size

Package Included:
1 x K10 Pneumatic Industrial Turbine Vibrator
