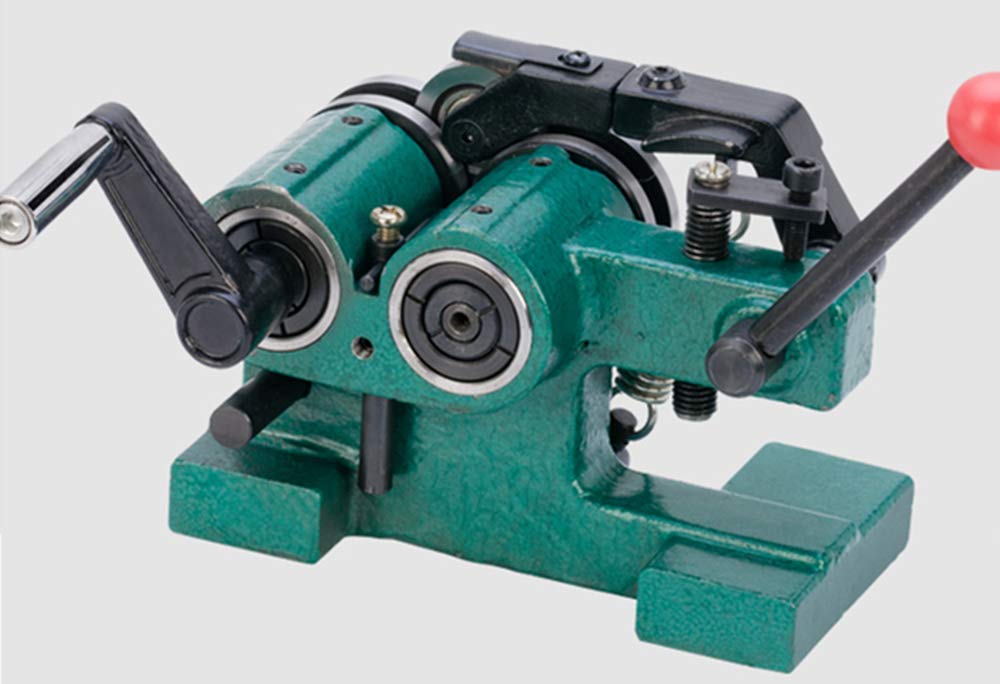

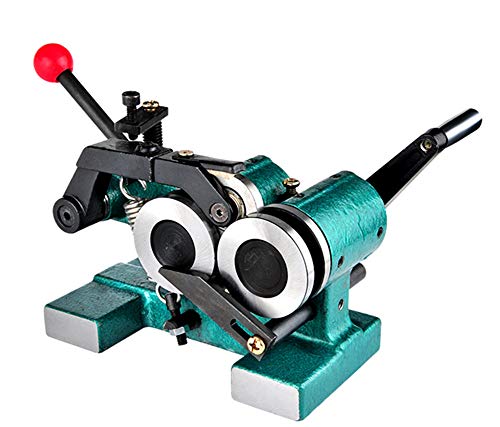

Punch Grinding Machine High Precision Punch Pin Grinder Grinding Machine Φ1.5~25mm 0.008mm
Punch Grinding Machine High Precision Punch Pin Grinder Grinding Machine Φ1.5~25mm 0.008mm
Punch Grinding Machine High Precision Punch Pin Grinder Grinding Machine Φ1.5~25mm 0.008mm
Punch Grinding Machine High Precision Punch Pin Grinder Grinding Machine Φ1.5~25mm 0.008mm
Punch Grinding Machine High Precision Punch Pin Grinder Grinding Machine Φ1.5~25mm 0.008mm

Punch Grinding Machine High Precision Punch Pin Grinder Grinding Machine Φ1.5~25mm 0.008mm

Regular price $159.99 Sale price $129.99
Free Shipping to USA and Worldwide

Description:

  • Punch grinder for the use of a variety of surface grinder, use a simple press roller, it is convenient precision grinding processing double roller design, no correction center, the work piece will be placed between the two rollers, you can get concentric.

Feature:

  • Double Roller: concentric circle can be obtained by placing the work piece between two rollers without calibrating center.
  • Simple Operation While High Precision: hand-operated punch grinder, used in conjunction with surface grinder, with simple pressing roller, can facilitate precision grinding.
  • High Precision and Durability: selected steel ensures high precision and excellent workmanship ensures durability.
  • High Hardness and High Quality:material the rollers use is sus440.

Parameter:

  • Roller clamping range diameter: 1.5~25mm
  • Roller clamping range length: 22~100mm
  • Roller deflection accuracy:<5um
  • Clamping accuracy: 5um
  • Roller material: sus440
  • Hardness: HRC58-62°
  • Weight:6.3kg

Package Include:

  • 1x Punch Grinding Machine
