Coating Thickness Gauge Digital Paint Thickness Gauge Meter Tools Ferrous and Non-Ferrous 2 in 1 RZ240

Description:

• The thickness gauge is used to measure the thickness of the plated and coated sheet ,paint and anodizing coating on aluminum/copper.
• The Gauge takes the precision integrated probe,and uses principles of electro-magnetic induction and the eddy current effect ,which automatically detects the attribute of substrates.
• It often used to measure the thickness of galvanizing layer,lacquer,porcelain enamelayer,phosphide layer,copper tile,aluminiumtile,some alloy tile,paperetc.(e.g. paint,plastic,porcelain enamel,copper,zinc,aluminium.chrome iron,nickle etc)
• It is use on anodizing,varnish,paint,enamel,enamel,pastic coatings,powder,etc.applied to aluminum.brass.non-magnetic stainless,etc

Main Feature:

• More widely measuring range
• -Two measuring mode:Target Ferrous and Target non-Ferrous material
• -Both with zero point calibration and multi-point calibration
• -Automatically identify sustrate material and display on the LCD
• -Large LCD display screen
• - Button is simple, easy to operate, one-hand operation
• - V shaped groove suitable for measurements on cylindrical parts
• -Specail probe structure comes with better stability
• - Auto power off in 15minutes with no-operation.
• -Low battery indication
• - '' Beep"sound when measurement or calibration is completed

Specification:

• Principle:Magnetic Induction
• Measurement range: 0 - 1300um; 0 - 51.2mil
• Accuracy:± (2um+3%H),±(3%+0.08mil)
• Resolution: 0.1μm /0.01il
• CalibrationPoints:ZERO/50/100/250/500/1000μm
• Units:μm,mil
• Minimum curvature radius convex:1.5mm
• Minimum curvature radius concave:25mm
• Minimum measuring area Diameter:6mm
• Minimum thickness of substrate:0.5mm(0.02'')
• Operating Condition: Temperature:0℃~40℃(32~104℉)Humidity:20%~90%RH

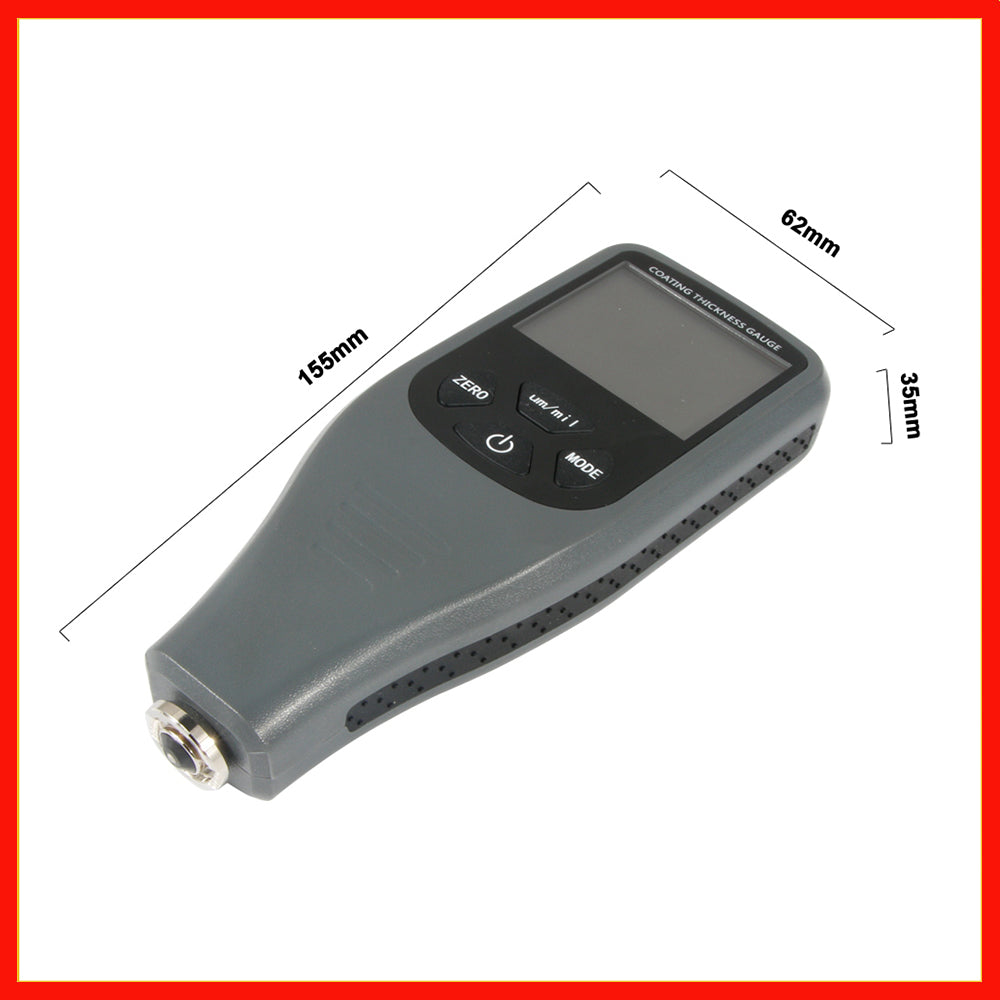

• Size:155mm*62mm*35mm(6.10''*2.44''*1.38'')
• Weight:125g(4.41oz)

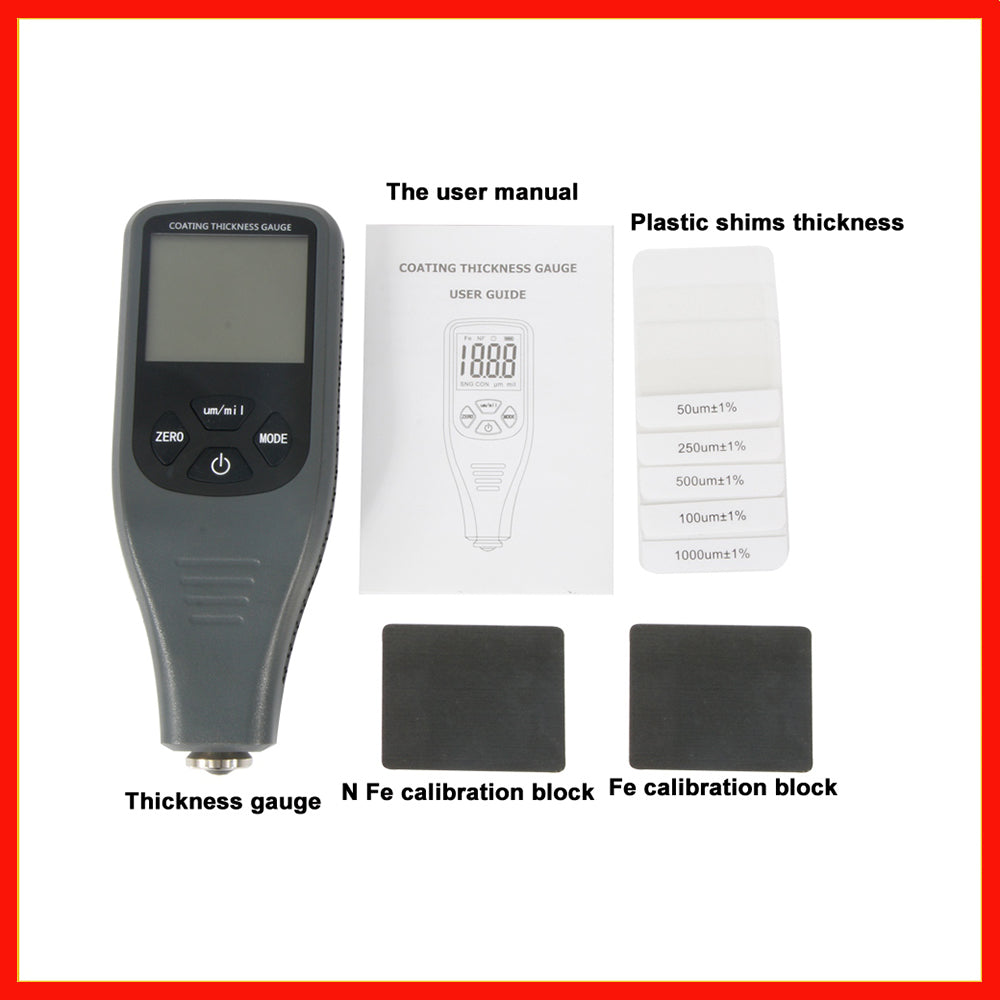

Package Included:

• 1xCoating Thickness Gauge
• 1xEnglish User guide
• 2xSubstrates
• 5xStandard foils
• 1xProtective Case
