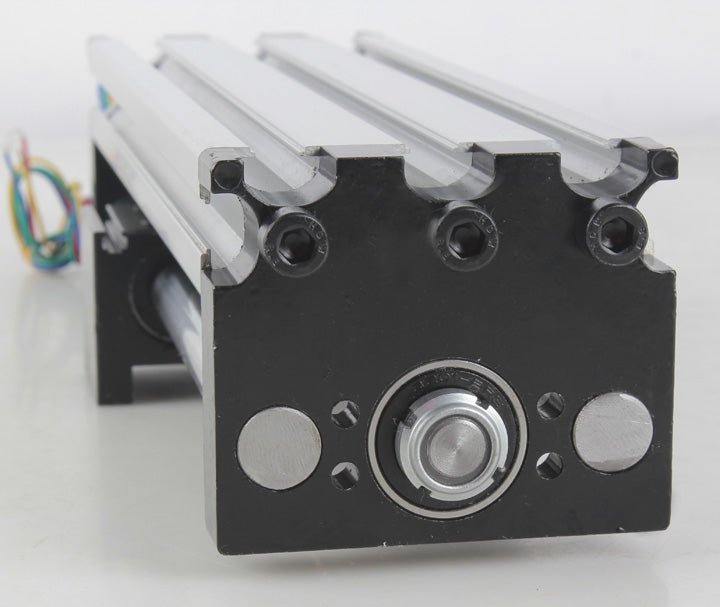

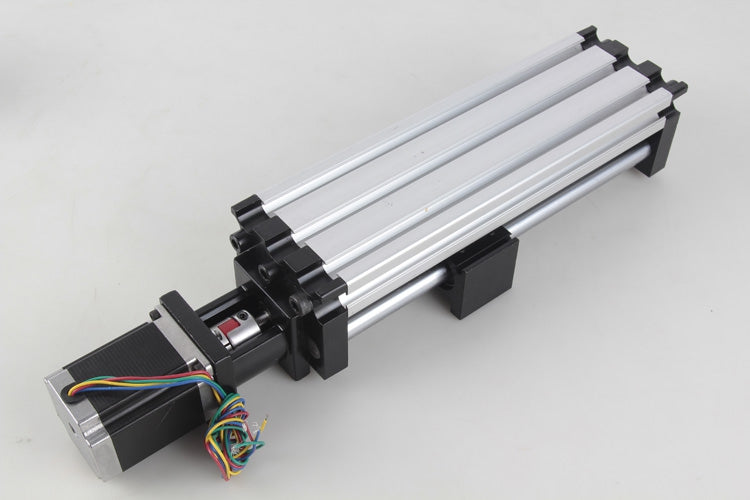

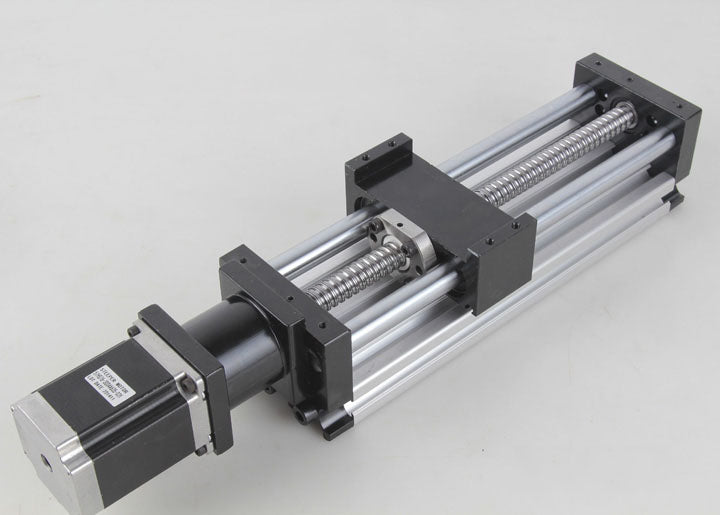

Ball Screw Linear Slide Stroke Actuator Stepper Motor 100~1000mm
Ball Screw Linear Slide Stroke Actuator Stepper Motor 100~1000mm
Ball Screw Linear Slide Stroke Actuator Stepper Motor 100~1000mm
Ball Screw Linear Slide Stroke Actuator Stepper Motor 100~1000mm
Ball Screw Linear Slide Stroke Actuator Stepper Motor 100~1000mm
Ball Screw Linear Slide Stroke Actuator Stepper Motor 100~1000mm
Ball Screw Linear Slide Stroke Actuator Stepper Motor 100~1000mm
Ball Screw Linear Slide Stroke Actuator Stepper Motor 100~1000mm

Ball Screw Linear Slide Stroke Actuator Stepper Motor 100~1000mm

Regular price $172.99 Sale price $142.99
Free Shipping to USA and Worldwide

Product Features

  • -100% brand new and high qualtiy
  • -High precision, heavy load resistance
  • -Long life, low coefficient of friction, versatility
  • -The ball screw consists of a screw, nut and ball. The rotation movement into a linear motion, with a small frictional resistance.

Specifications

  • Item :Precision CNC Linear Slider With Stepper Motor Slide Stroke
  • Materials:Aluminum alloy
  • Color:Silver+black
  • Size:460mm*110mm
  • Slide Width:90mm*45mm
  • The Number Of Sliders:1
  • Accuracy:0.01mm
  • Round Trip Accuracy:0.05-0.08mm
  • Ambient Temperature:-10℃-50℃
  • Slide Stroke:100mm,400mm、1000mm
  • Screw Specifications: Ball screw 1605
  • Guide rail diameter: 16mm
  • Motor: 1.8NM 57 stepper motor

Note:Due to the manual measurement,there might be some error.

Package Included

1 x ball screw slide(with a stepper motor)
