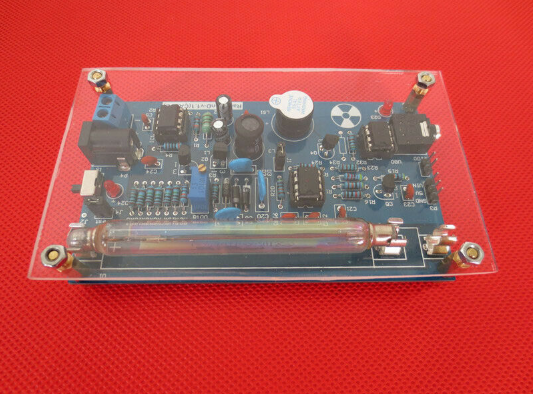

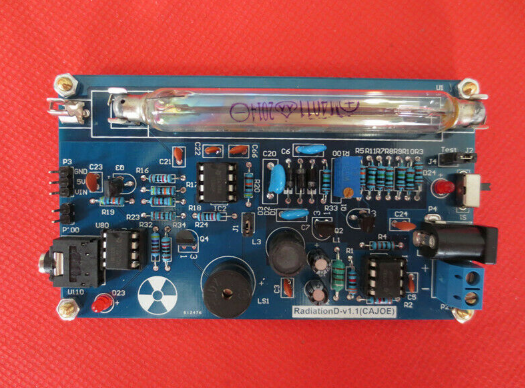

Description: 1. The Nuclear Radiation DIY Detector Kit. Arduino compatible kit. Can drive M4011,STS-5, SBM20 or J305 Geiger tubes on the PCB. Has voltage compatibility with all popular GM Tubes that requires anode voltage 350-500V. 2. The kit has visual and sound indication of the radiation and can be used as detector of dangerous radiation levels or radioactive materials in your environment. Excellent cheap solution for Arduino COSM monitoring station. 3. Good kit for MCU software developers that just want to drive Geiger Tube for their own software. 4.Include PDF manual with instruction and Arduino code examples. The kit is compatible with "Radiation Logger" via Arduino SPI. 5. Assembled soldered calibrated board of radiation detector with GM Tube(M4011).
Specifications: Geiger Tube PCB Compatibility: J305,M4011, STS-5, SBM-20 Geiger Tube Voltage Compatibility: All General GM Tubes with anode voltage 350-480V Sound and Visual Indication Arduino Compatible Supply Voltage: 5V; 3x 1.5V Battery; 4x 1.2V Battery Include high impedance voltage divider Supply Current: 12mA - 30mA Dimensions: 120 x 50 mm Shipping Weight: 150g
Package Included: 1x Assembled Radiation Detector system 1x GM Tube(J305), already assembled on PCB board 1x Power supply cable 1x Materials are sent through email address 1x Battery Holder (without batteries) 3x Jumper Wires
