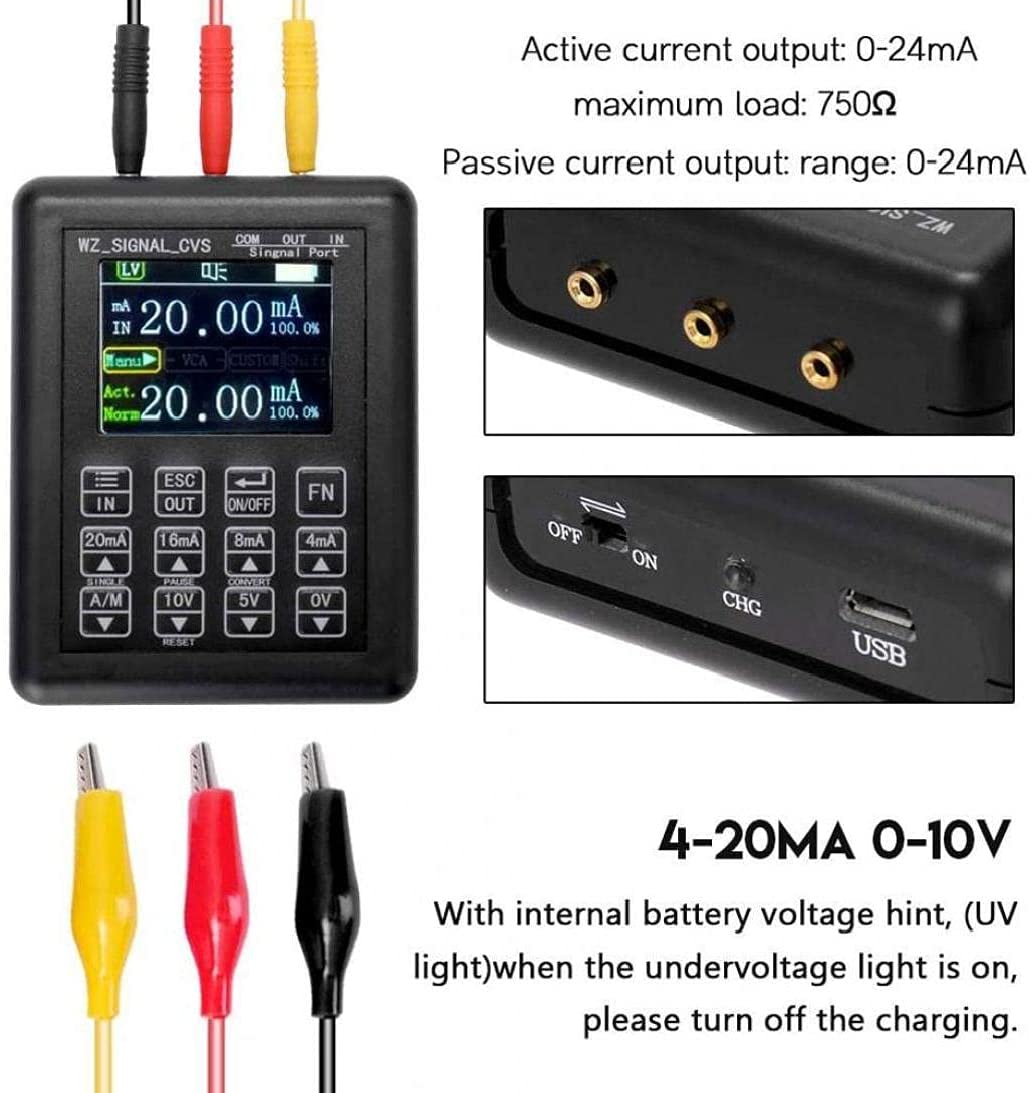

Active current output: range: 0-24mA; resolution: 0.01mA; maximum load: 750Ω
Passive current output: range: 0-24mA; resolution: 0.01mA; external power supply up to 30V.
Voltage output range: 0-12V; resolution: 0.01V; maximum current 30mA
24V voltage output: drive current: 24mA.
Current input measurement: range: 0-24mA; resolution: 0.01mA; input impedance: 100Ω
Voltage input measurement: range: 0-30V; resolution: 0.01V; input impedance: 2.5MΩ
Working environment: 0°C-50°C
VC conversion function:
This function is mainly used for some temporary voltage and current conversion, such as converting 0-10V input to 4-20mA output.
VC active conversion: convert voltage signal input into active current signal output VC passive conversion: convert voltage signal input into reactive current signal output
C-V conversion: convert current input signal into voltage signal output
The functional rules include the following parts: VC transfer switch, transfer mode, voltage upper limit, voltage lower limit, current upper limit, current lower limit and over-range.
Internal reverse and overcurrent protection, the protection voltage is 30V.
Built-in single 3.7V lithium battery power supply; according to the usage, the use time will be different (continuous output 20mA may exceed 6 hours).
When there is an internal battery voltage prompt, when the (UV lamp) under voltage indicator is on, please turn off the charging.
Do not use it for a long time, please charge it every two months.
Charge with micro USB.
The operating temperature range is 0 to 50 degrees Celsius.
1 × Signal Generator Host

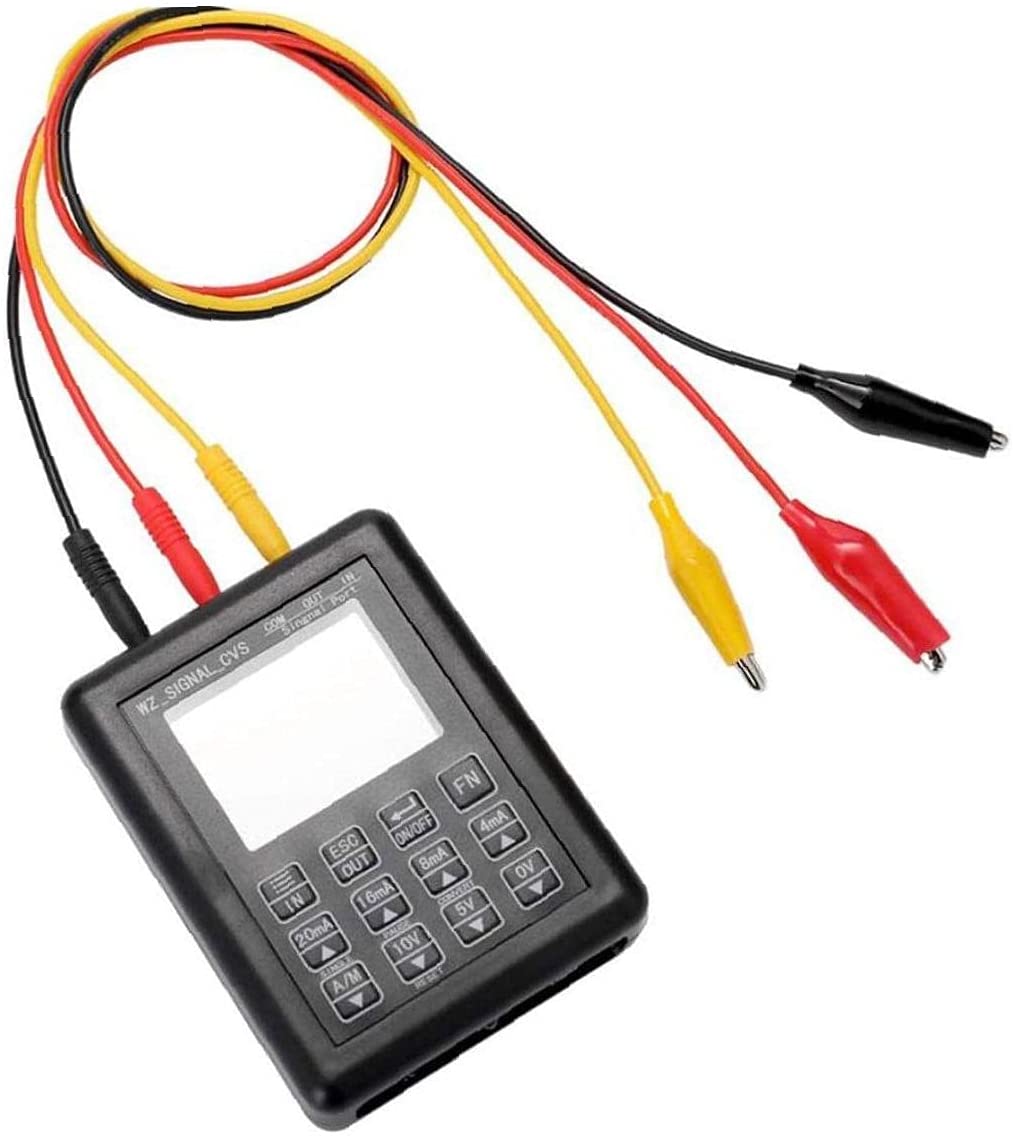

3 × Test Lines
