Features:
Accuracy: 3-Axes optical stage with micrometer heads for accurate position.
Durability: Made of aluminum alloy material with black anodized surface.
Using intersection roller guide for high accuracy, smooth movement.

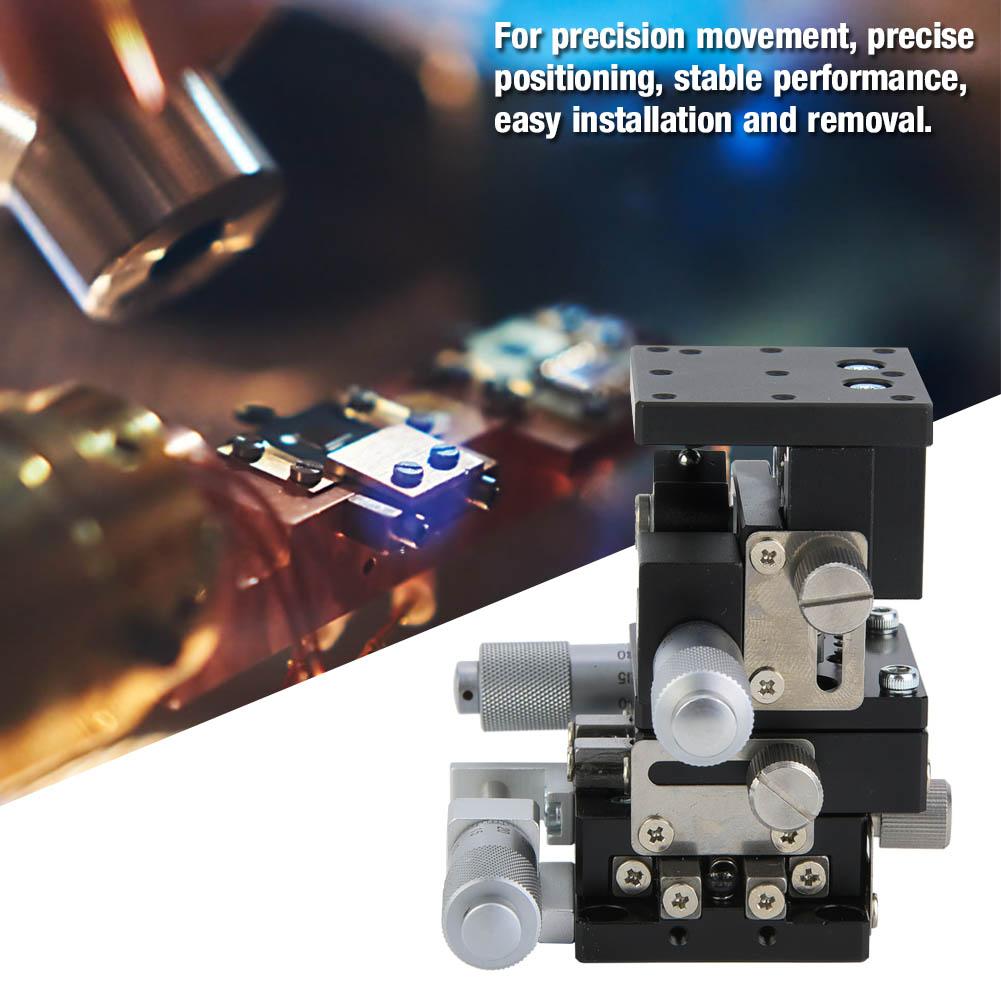

For precision movement, precise positioning, stable performance, easy installation and removal.
Widely used in optical instruments and apparatus, measuring equipment, testing fixture, Semiconductor manufacturing equipment, testing machine, microscope, transporter, process machine, medical equipment, printing machine, etc
Technical Parameter:
Product Type: LM-60-L
Move direction: XYZ axis three degree of freedom
Material: Aluminum
The slider range: 60mm * 60mm
Stroke: ±6.5mm
load: 29.4N (3kgf)
Rail Type: V-type rail
Minimum reading: 0.01mm
Straightness: 0.01mm
Package Included:
1 x XYZ 3-Axis Trimming Platform
