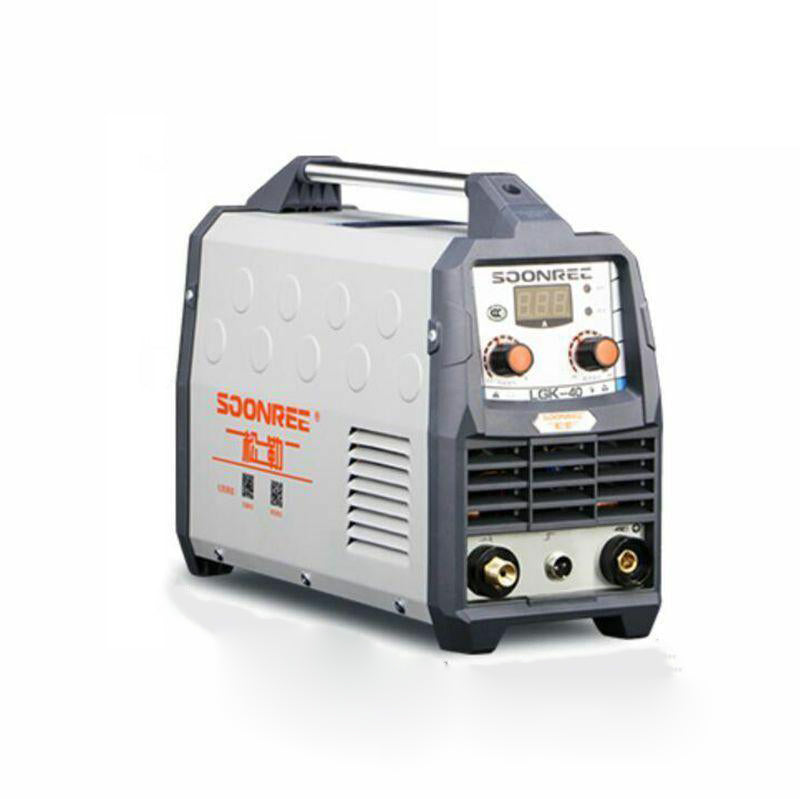

220V LGK-40 Plasma Cutter Portable Air Plasma Cutting Machines Steel Plate Cutting Machine

Product Description:

Effective cutting thickness 8mm, Max Severance Thickness 12mm

Outstanding cutting performance. Especially suitable for cutting carbon steel, stainless steel, aluminum and copper.

Using air pressure adjusting equipment. Able to operate when the external air pressure is too high

With protection of electro circuit against over current, over voltageand low-voltage. Safety in operation is assured.

Able to cut metal plates in various routes.

Specification:

Input voltage: 220V±15%

Frequency: 50Hz

Rated input power: 4.8 KVA

Current adjustment range: 20-40A

No load voltage: 230V

Effective cutting thickness: 12mm

Rated output voltage: 96V

No-load loss: 40W

Load duration: 60%

Efficiency: 80%

Power factor: 0.73

Insulation class: B

Shell protection class: IP23

Arc starting method: contact arcing

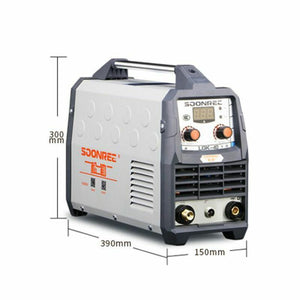

Size:39*15*30 cm

Weight: 7.5kg

Package include：

1x A set of plasma cutting machine

1x cutting gun

1x ground wire

2x ceramic cover

2x splitter

10x electrode

10x nozzle

1x trachea

1x pressure reducing valve

4x hose clamp
