2 PACK 12V-40V 10A DC Motor Speed Controller PWM Variable Speed Regulator Governor Switch
Free Shipping to USA and Worldwide
Product Description: 【Protection Function】: Its own power supply reverse polarity protection, control voltage over-voltage protection. 【Speed Adjustment Knob】：Knob is with switch function, can control motor speed to change from 10 percent to 100 percent , and it is noise free when motor is at low speed. 【CCMHCW DC Motor Governor】CCMHCW DC Motor speed regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM). 【Performance】Input supply voltage DC 12V-40V. Maximum continuous output current 10 A. Maximum output power 30W. 【Features】Ultra-low voltage dc motor governor; Potentiometer with switch function; Use a 2A resettable fuse to protect the controller; Power-on indicator. 【Practical】The governor is equipped with a self-recovery fuse. When the current is too large, the fuse is automatically disconnected. After cooling, the fuse is automatically restored. 【Note】DC motor speed controller is connected to DC power supply. Never connect directly to household 220V AC power supply.If you need the forward and reverse function, you can connect forward-reverse switch.

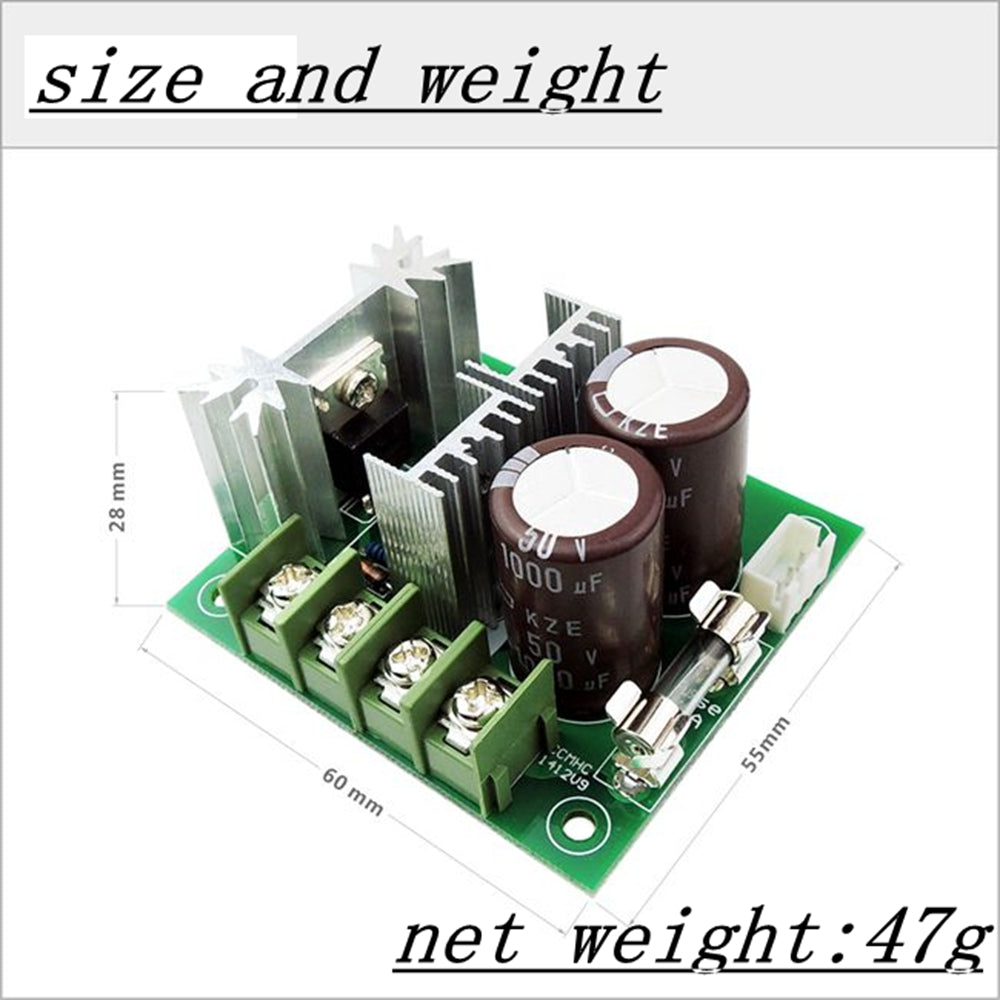

Parameter： Model: CCMHCW Input voltage: DC12V-40V Control power: 0.01-400W Control power: 12V*8A = 96W, 24V*8A = 192W...40V*8A = 320W Applicable current: Rated current 8A Maximum through current ：10A Quiescent current ：0.02A (standby state) Speed adjustment range: 10%-100% PWM frequency: 13khz PWM pulse width speed regulation range: 10%-100% Size: 60 mm*55 mm*28 mm Weight: 66g
Package include: 2 x A PWM DC motor speed regulator
