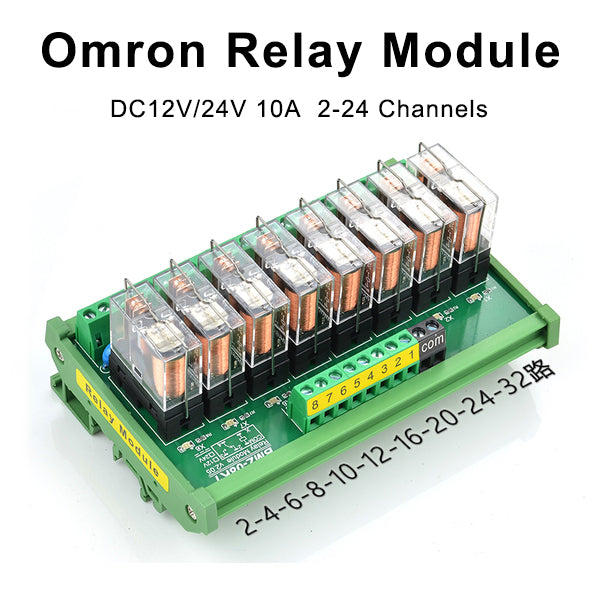

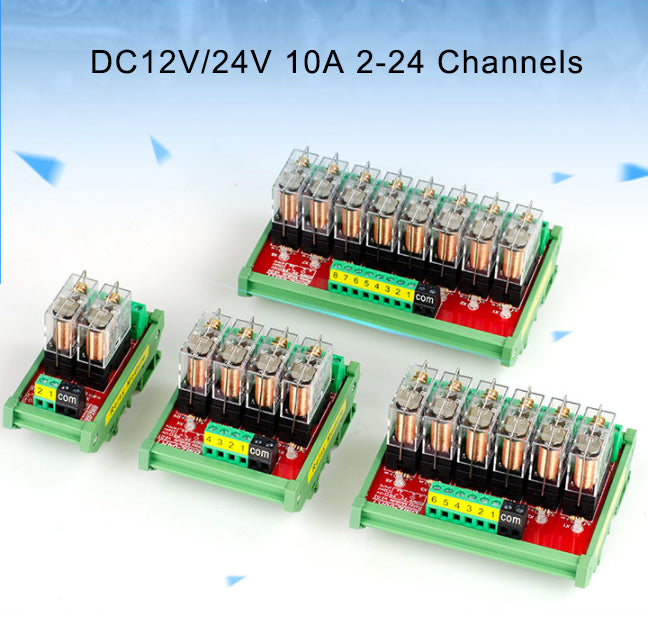

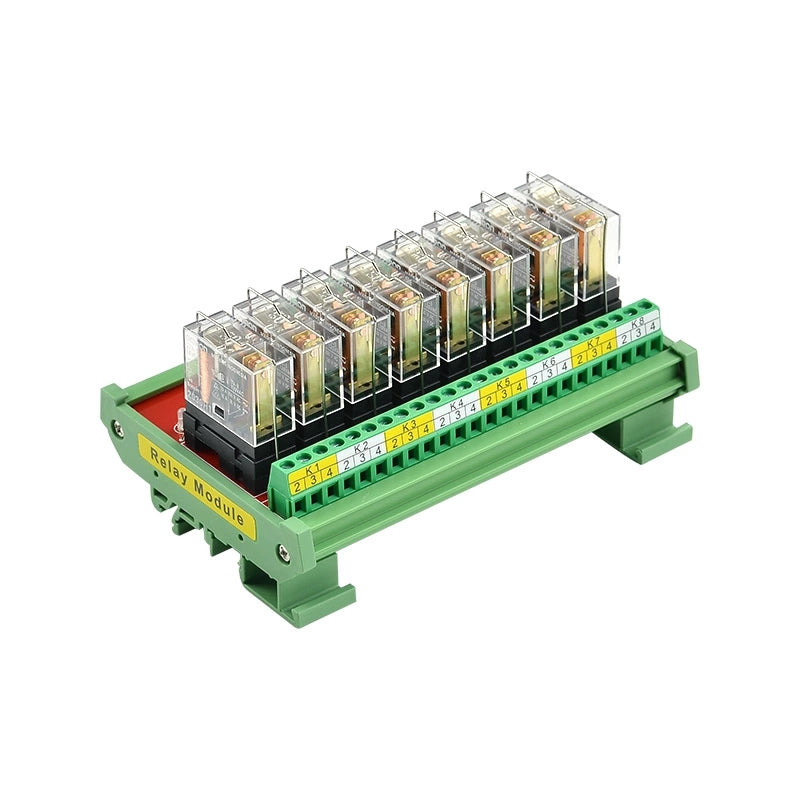

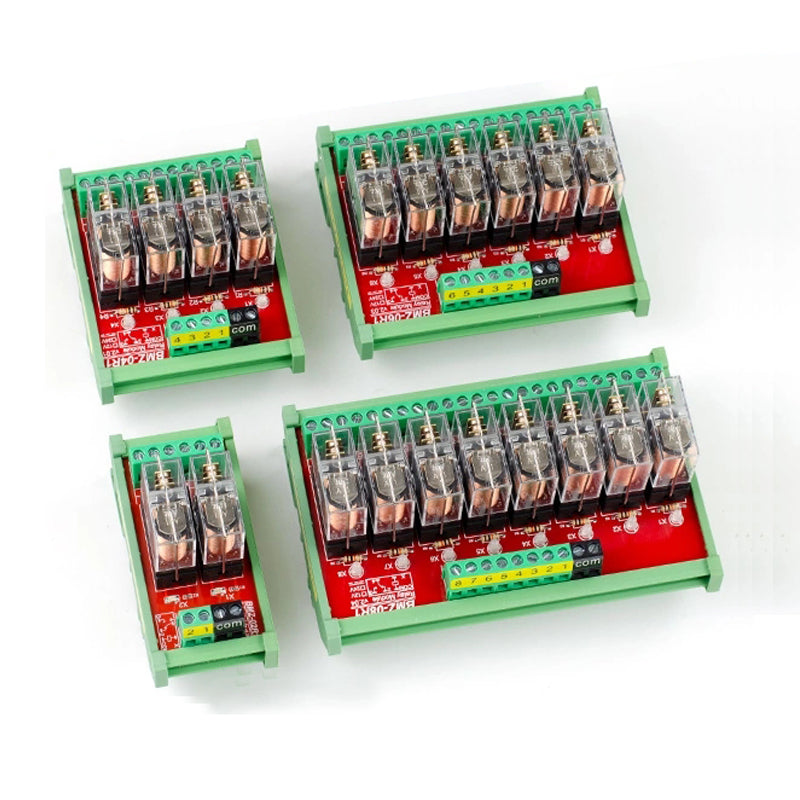

2/4/8 Channel DC 12V/24V Relay Module Input Single-Chip PLC Signal Isolation Amplifier Board
2/4/8 Channel DC 12V/24V Relay Module Input Single-Chip PLC Signal Isolation Amplifier Board
2/4/8 Channel DC 12V/24V Relay Module Input Single-Chip PLC Signal Isolation Amplifier Board
2/4/8 Channel DC 12V/24V Relay Module Input Single-Chip PLC Signal Isolation Amplifier Board
2/4/8 Channel DC 12V/24V Relay Module Input Single-Chip PLC Signal Isolation Amplifier Board
2/4/8 Channel DC 12V/24V Relay Module Input Single-Chip PLC Signal Isolation Amplifier Board
2/4/8 Channel DC 12V/24V Relay Module Input Single-Chip PLC Signal Isolation Amplifier Board
2/4/8 Channel DC 12V/24V Relay Module Input Single-Chip PLC Signal Isolation Amplifier Board
2/4/8 Channel DC 12V/24V Relay Module Input Single-Chip PLC Signal Isolation Amplifier Board
2/4/8 Channel DC 12V/24V Relay Module Input Single-Chip PLC Signal Isolation Amplifier Board
2/4/8 Channel DC 12V/24V Relay Module Input Single-Chip PLC Signal Isolation Amplifier Board

2/4/8 Channel DC 12V/24V Relay Module Input Single-Chip PLC Signal Isolation Amplifier Board

$21.89
Free Shipping to USA and Worldwide

Features:

1. Using Omron G2R-1 relay, the contact current can reach 10A

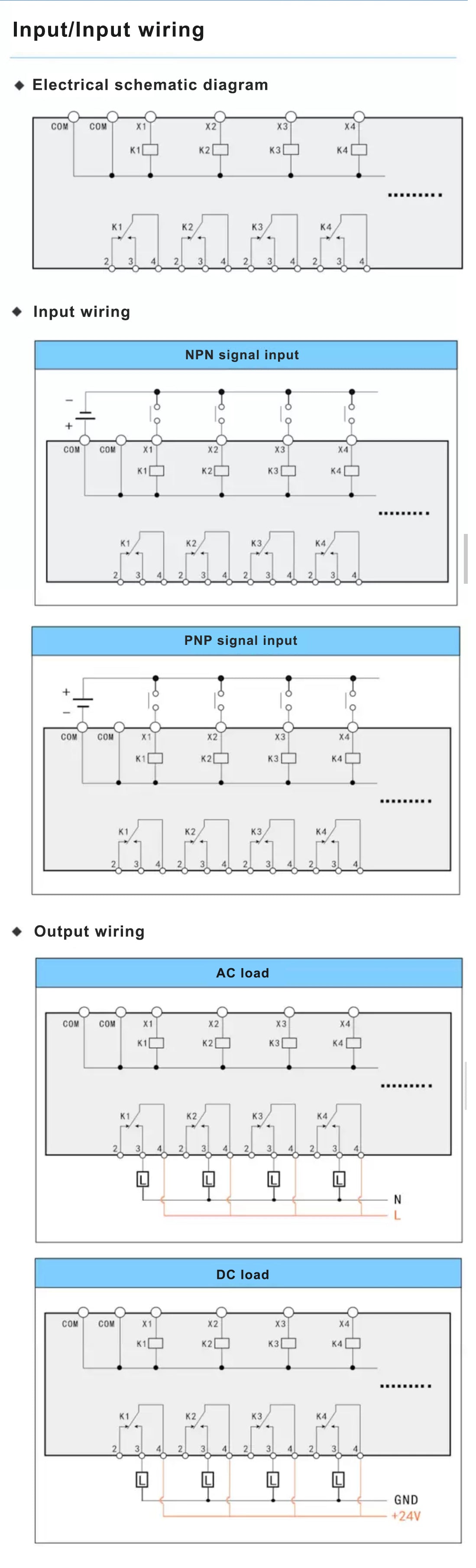

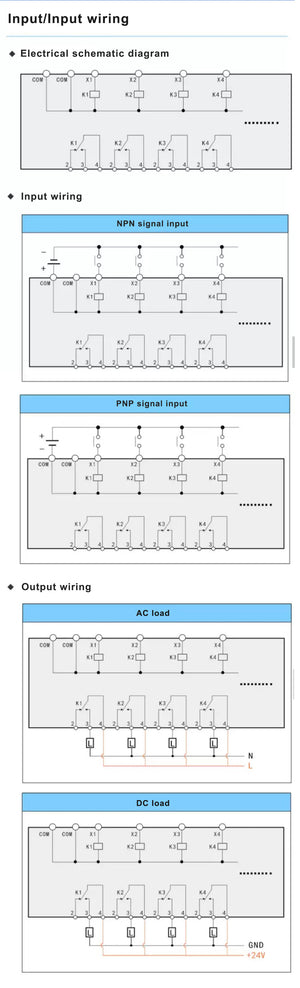

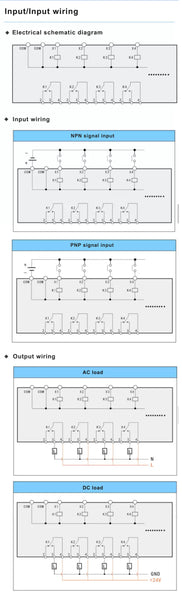

2. Compatible with two signal input modes, positive control and negative control

3. Adopting two-way LED indicator, the relay coil will be disconnected, and the water will be reversely conducted, which plays a role of freewheeling protection

4. The output contact has a surge protection function

5. Each channel has an LED indicator

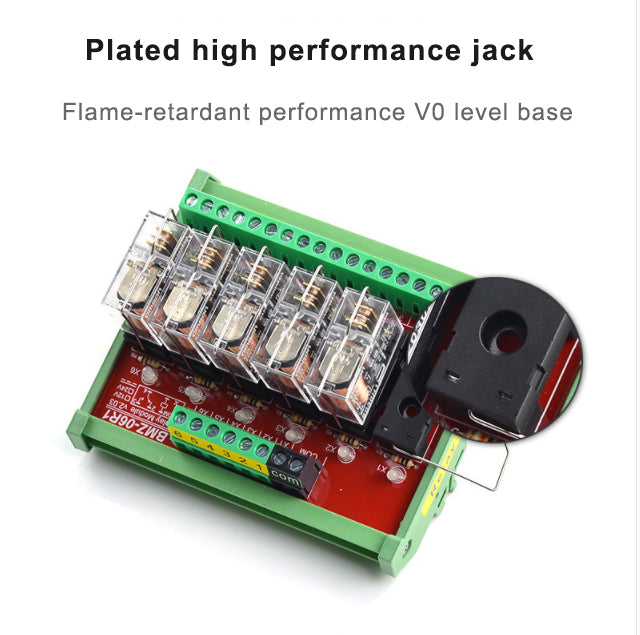

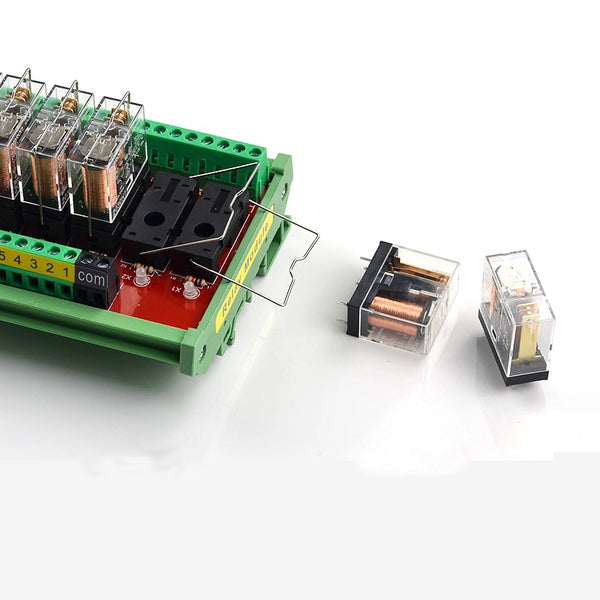

6. The relay adopts a pluggable base, and each relay circuit is independent, compatible with other brand relays, and is convenient for maintenance and replacement.

Parameters:

Module model: BMZ-R1

Coil voltage: DC12V/24V

Working temperature: -44℃~55℃

Relay model: G2R-1

Contact mode: one open and one closed

Rated current: 10A 250VAC / 10A 30VDC

Package Included:

1 × Relay Module
